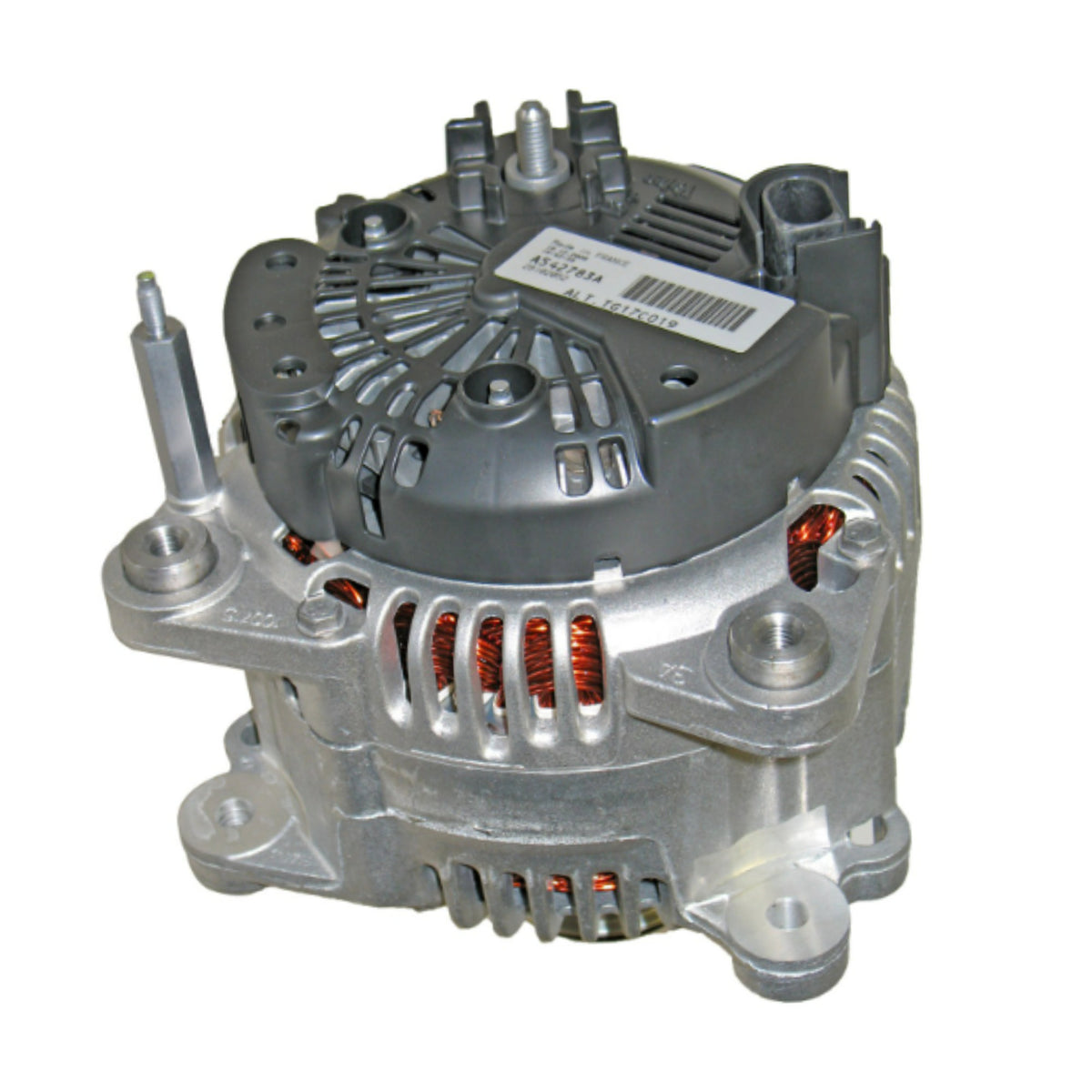

Alternator 2006-2007 Volkswagen Passat 3.6L 180 Amp TG17C019 - 11257

** for parts you must match the 180 Amp Valeo TG17C019 Option
Volkswagen Passat V6 3.6L 3597CC 219CID 2006-2007
** Also options on these models
for 180 Amp Bosch see Alternator # 11221
for 140 Amp Valeo see Alternator # 11149
for 140 Amp Bosch see Alternator # 11134

Alternator Manufacturer and Factory #s
Audi, Volkswagen 021-903-026-L, 021-903-026-LX, 021-903-026L, 021-903-026LX; 021903026L, 021903026LX, 021903026L, 021903026LX
ERA 210898
Excel 10907
Hollander 50122
Lester 11257
Valeo TG17C019, FG18T033, 439558, 437555, 2542783D

TYPE Alternator
AMPERAGE 180
DESIGN IR/IF
MFR VALEO
PLUG CODE 367
PULLEY DESIGN SC6
ROTATION CW
VOLTAGE 12

ALT-11257 PASSAT 180A OE 1 439558
DE FRAME ASSY-11257 TG17 1 593901 77011281
RECT COVER-TG SERIES OE 1 W012-107N
RECT COVER-11257 VW OE 1 W012-97N 8408161
6202-2RS BEARING-15x35x11mmPFI 1 W02X-05-1 53500
6303-2RS C3 BEARING-PFI 1 W02X-11-1 54700
DIODE-NEG 70A-22V 3 W04X-53 7700247
DIODE-POS 70A-22V 3 W04X-54 7700246

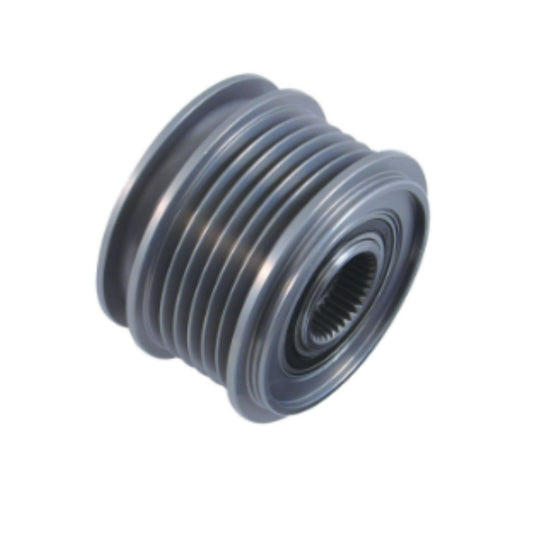

CL PULLEY-13947 6GRV56 ZEN 1 W052-03
CLU PULLEY-13947 6GRV26 ZM 1 W052-03B
CL PULLEY-13947 6GRV56mm OE 1 W052-03N 79202017
ROTOR-180A 1 W072-15N 70081001

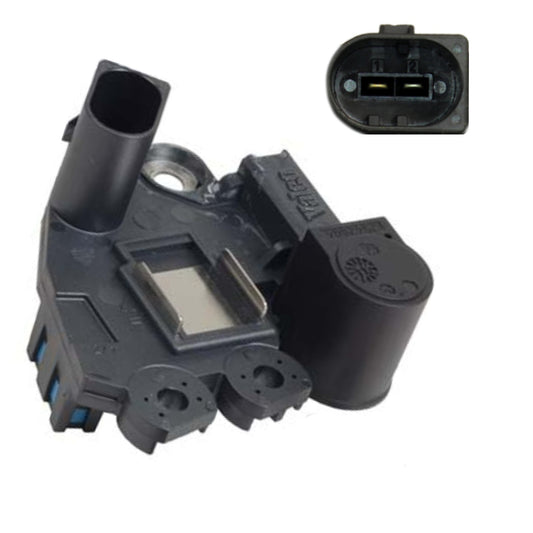

Regulator 1 W082-124N 80084059
Brush Set 7308108B
Plug 9801073
BEARING CAP-A13VI SG TG 1 W112-13 85010003
VIBRATION DAMPENER-TG15C 4 W112-29
BRG RETAINER-FG, SG OE 1 W112-41N
BRG RETAINER SCREW-M5 OE 4 W112-42N
SLIP RING-14.9mm OE 1 W162-05 710111
Stator 72087357
Nut 95001466
