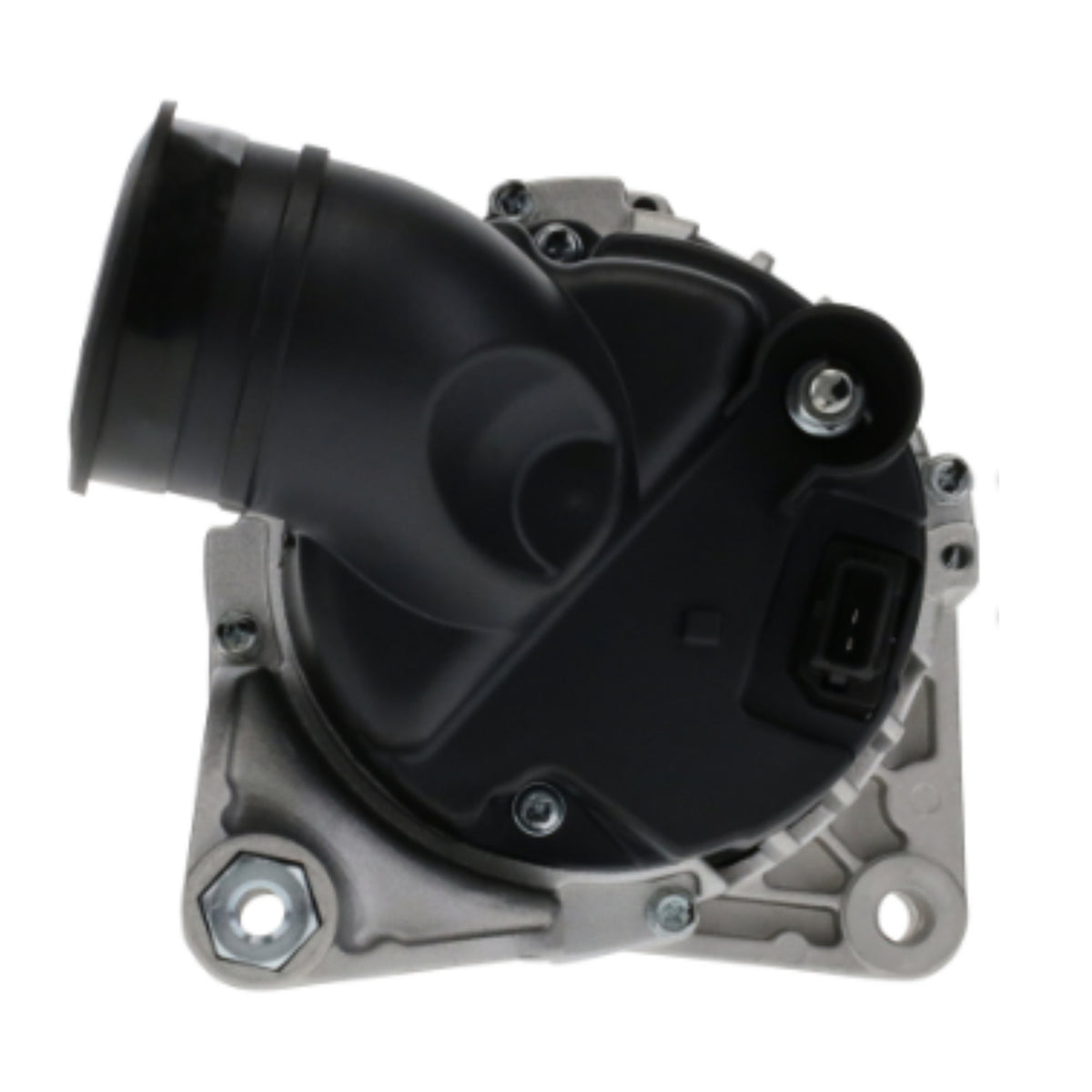

Alternator BMW 325 330 525 530 X5 Z3 w/ 90 Amp Valeo SG9B029 - 13971

BMW Applications with 90 Amp Valeo SG9B029
325Ci L6 2.5L 2001-2006
325i L6 2.5L 2001-2005
325i L6 3.0L 2006-2006
325xi L6 2.5L 2001-2005
325xi L6 3.0L 2006-2006
330Ci L6 3.0L 2001-2006
330i L6 3.0L 2001-2005
330xi L6 3.0L 2001-2005
330xi L6 3.0L 2006-2006
525i L6 2.5L 2001-2003
530i L6 3.0L 2001-2003
X5 L6 3.0L 2001-2006
Z3 L6 2.5L 2001-2002
Z3 L6 3.0L 2001-2002

Alternator Manufacturer and Factory #s
BMW 12-31-7-501-592, 12-31-7-501-687, 12411432977, 12411740624, 12411740626, 7501592, 7501687
Bosch Remanufactured AL9405X
Bosch Service Europe 0986040390, 0986040397, 0986604039
ERA 210164
Excel 10619
Hollander 60802
IAT A439397
Lester 13971
Valeo SG9B029 439397, VA537, VA538, 437366, 2542379

Manufacture Valeo
Amperage Rating 90
Decoupled Or Clutch Pulley No
Design IR/IF
Family SG9B
Fan Type Internal
Ground Type Negative
Oe Manufacturer Valeo
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 335
Plug Type 335
Pulley Belt Type Serpentine
Pulley Diameter 50
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator 1 439397 13971
Alternator Rebuild Kit 13971RK-A

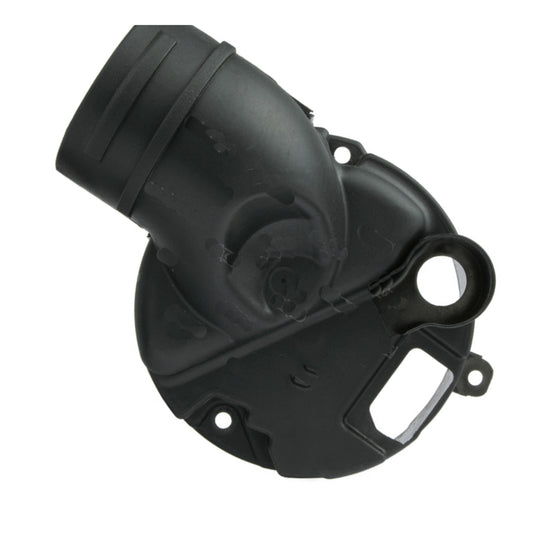

Cover 1 W012-44N 27367 8408159
6202-2RS BEARING-15x35x11mm 1 W02X-05-1 53500
6303-2RS C3 BEARING-PFI 1 W02X-11-1 54700
DIODE-NEG 50A-22V 3 W04X-51
DIODE-POS 50A-22V 3 W04X-52
ROTOR-SG9 12V90A 1 W072-07N 70015069
Regulator 1 W082-42N, W082-42 80084010
Plug 9801335
STATOR-90A VW SG9B 1 W102-05N 72087327
PARTS KIT-A13VI, A14VI 1 W112-11
BEARING CAP-A13VI SG TG 1 W112-13 85010001 46-94435
SLIP RING-14.9mm OE 1 W162-05 28-94867
Screw 96010002 96303004
Frame Assy, Rectifier 77084562 VL-241
Nut 95001508
Pulley 79083385 593602 39304 136937
