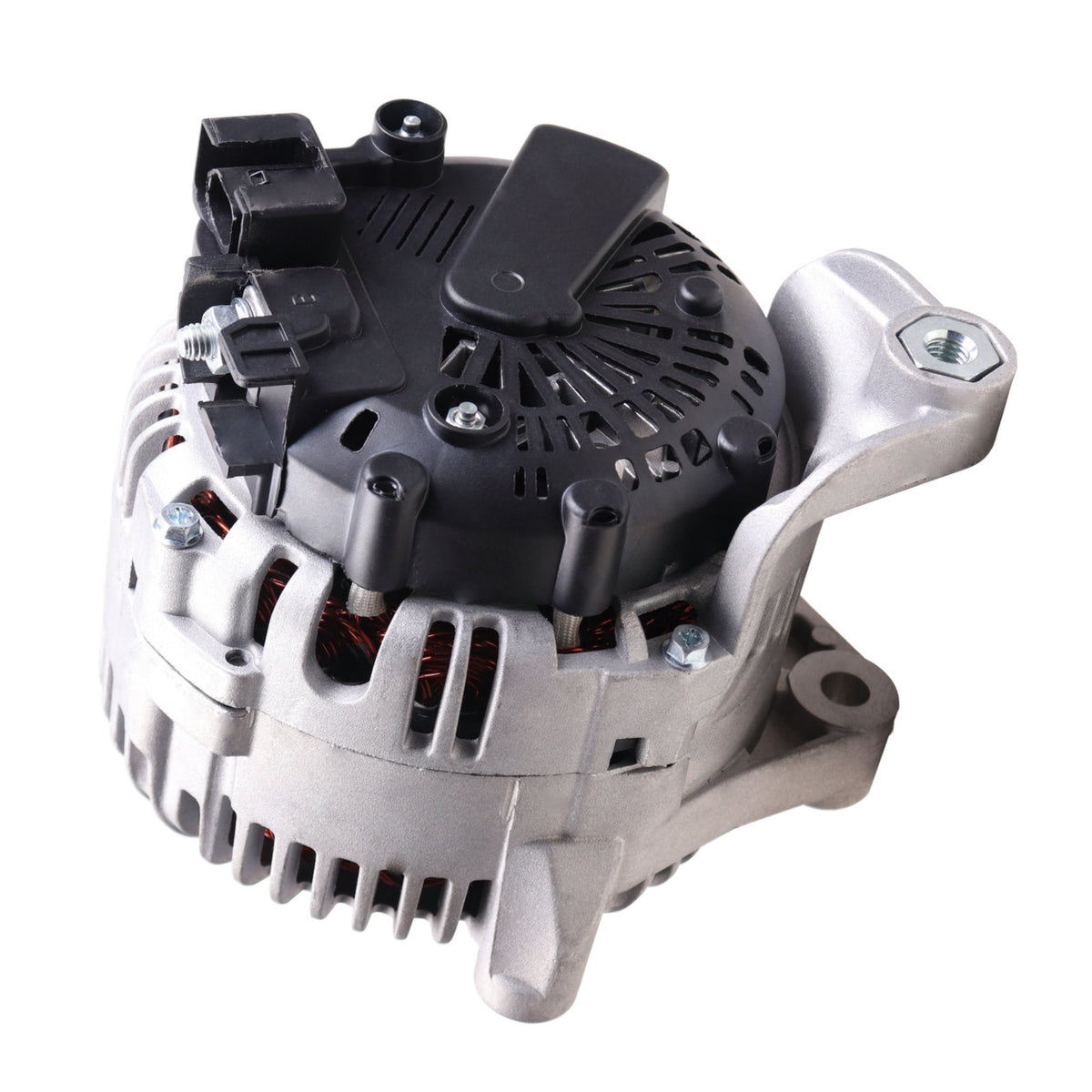

Alternator 2011-2013 BMW X5 3.0L w/ 180 Amp TG17C034, TG23C034 - 20879

BMW X5 L6 3.0L 2993CC 2011-2013 with 180 Amp TG17C034, TG23C034 - 20879

Alternator Manufacturer and Factory #s
BMW 12-31-7-796-125, 12-31-7-801-173, 12-31-8-510-090, 21-31-7-801-173, 7796125, 7801173
Bosch Aftermarket AL9459X (Reman)
Bosch Service Europe 0-986-UR6-370
Lester 20879
Lucas (Europe) LRA03269
Valeo 2543222, 2543222B, TG17C034, TG23C034
Valeo 439605, 2586296


Manufacture Valeo
Amperage Rating 170
Decoupled Or Clutch Pulley No
Design IR/IF
Family TG17
Family TG23
Fan Type Internal
Ground Type Negative
OE Manufacturer Valeo
Plug Clock 12
Plug Clock Rear View Main Mounting Ear At 6 O Clock 1
Plug Code 430
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 53.8
Pulley Groove Od 53.8
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

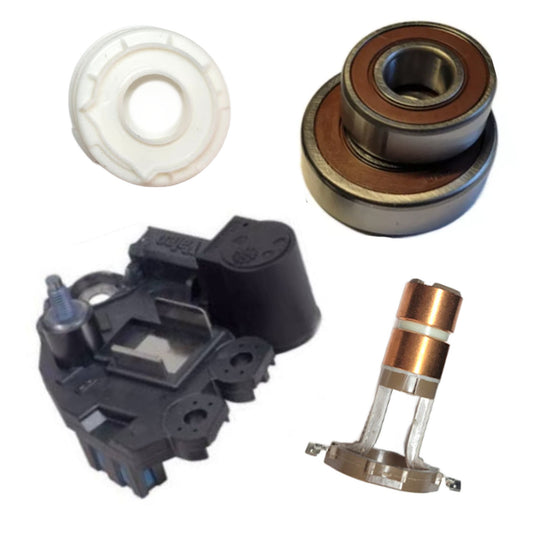

Alternator Rebuild Kit 20879OERK-A
COVER-20879 BMW OE 1 W012-94N
6202-2RS BEARING-15x35x11mm 1 W02X-05-1
6303-2RS C3 BEARING- 1 W02X-11-1
AVL DIODE-NEG 70A-22V 3 W04X-53
AVL DIODE-POS 70A-22V 3 W04X-54
ROTOR-180A JEEP CHRY 1 W072-15N
REG-11355 BMW BSS M5 1 W082-54, W082-54N 599102
BEARING CAP-A13VI SG TG 1 W112-13
VIBRATION DAMPENER-TG15C 4 W112-29
SLIP RING-14.9mm OE 1 W162-05
