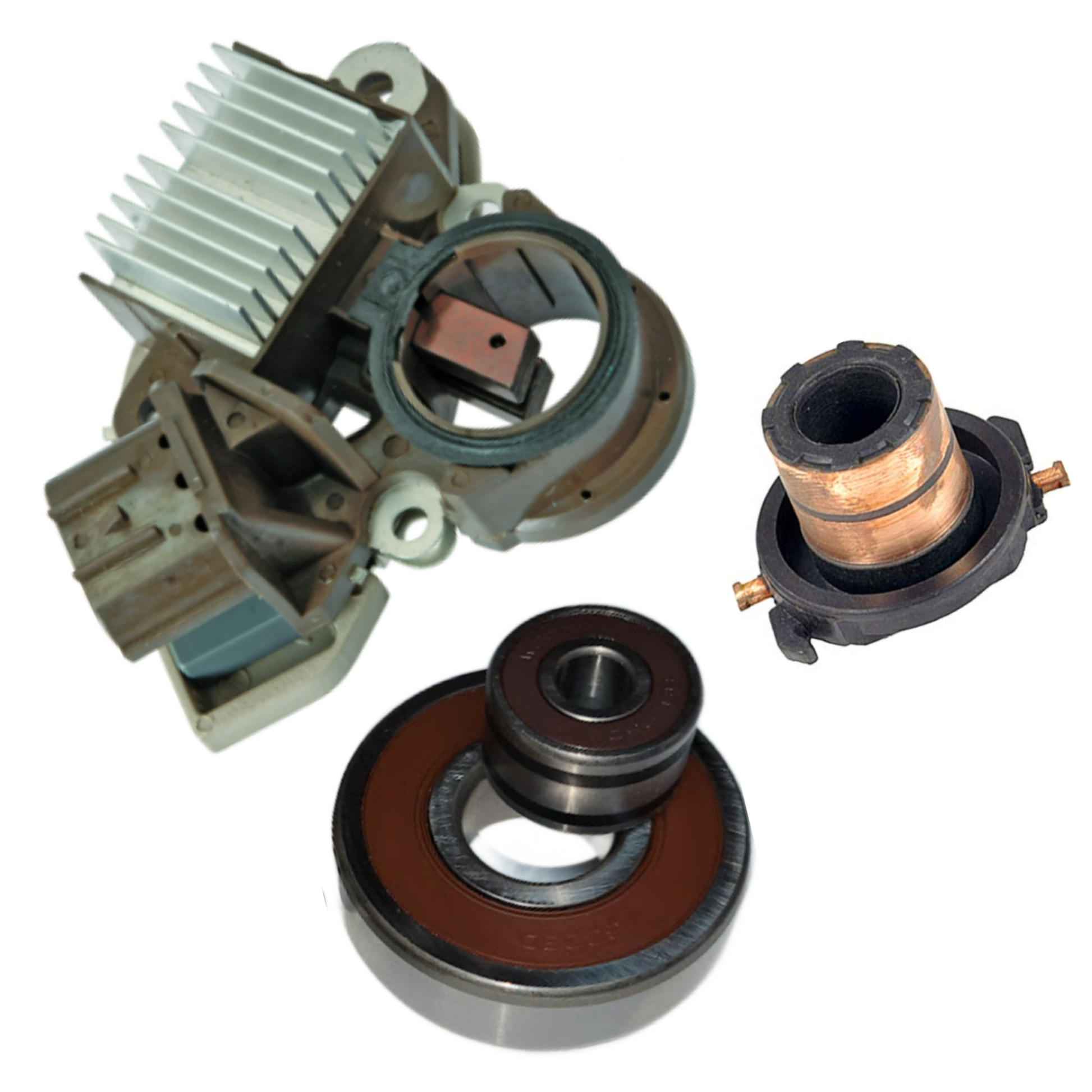

Alternator Rebuild Kit 2002-2006 Mazda MPV 3.0L 110 Amp A3TJ0191 - 11006RK-A

Mazda MPV V6 3.0L 2968cc 2002-2006 110 Amp

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-1170
Bosch Remanufactured AL4236X
Excel 10694
Hollander 60817
Lester 11006
Mazda AJ51-18-300, AJ51-18-300A, AJ51-18-300R, AJ51-18-300R00
Mitsubishi A003TJ0191, A3TJ0191
PIC# 203-5058

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4
• Here for Additional Part https://diyalternator.com/collections/mitsubishi-11006
