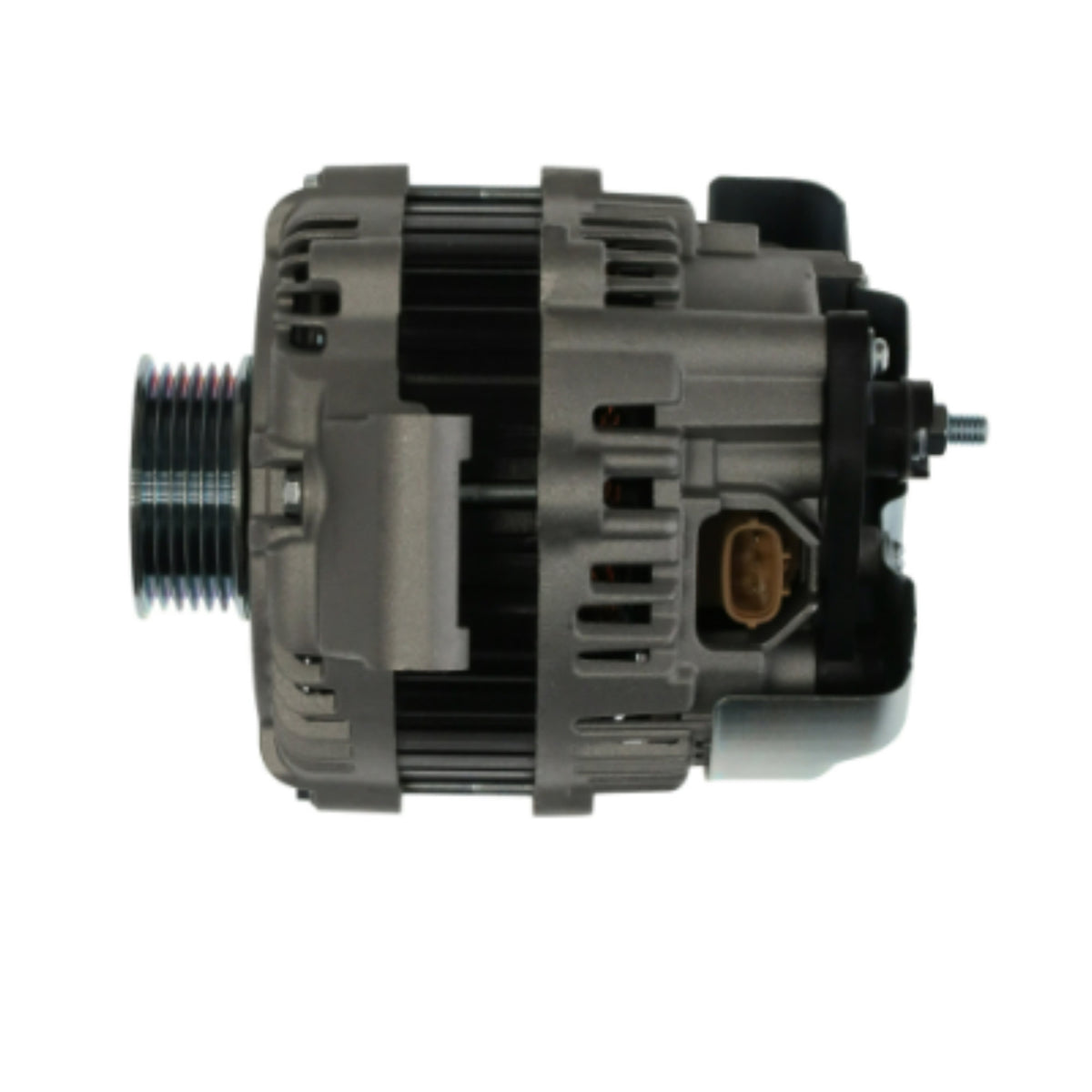

Alternator 2002-2006 Mazda MPV 3.0L 110 Amp A3TJ0191 - 11006

Mazda MPV V6 3.0L 2968cc 2002-2006 110 Amp

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-1170
Bosch Remanufactured AL4236X
Excel 10694
Hollander 60817
Lester 11006
Mazda AJ51-18-300, AJ51-18-300A, AJ51-18-300R, AJ51-18-300R00
Mitsubishi A003TJ0191, A3TJ0191
PIC# 203-5058

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design ED/IF
Family A3TJ
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 341
Plug Type 341
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

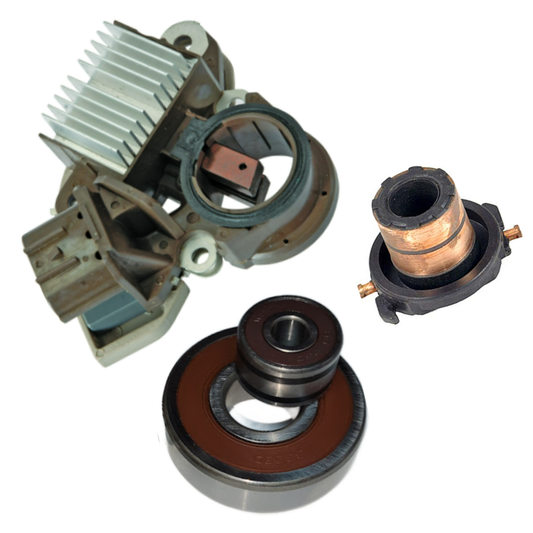

Alternator Rebuild Kit 11006RK-A
HEAT SHIELD MAZDA 1 W015-86
6303-2RS C3 BEARING 1 W02X-11-1 54700
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312
ALT BRUSH-5x8x24mm CLIP 1 W035-21 7303305 38-8307x2
PULLEY 6GRV 60mm OD 1 W055-91 79033061

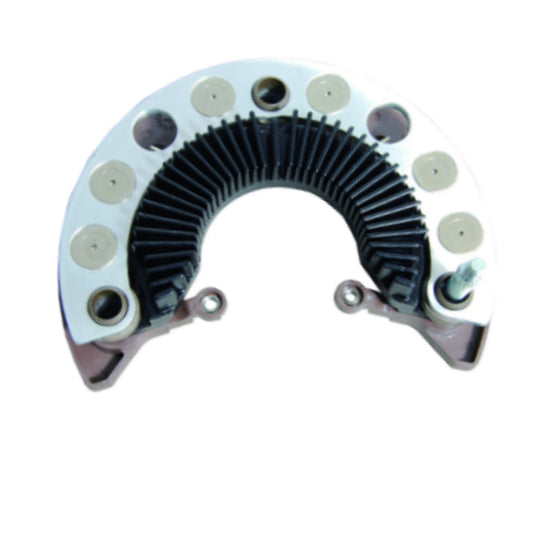

RECTIFIER MAZDA MPV 1 W065-248 77033157 IMR12806

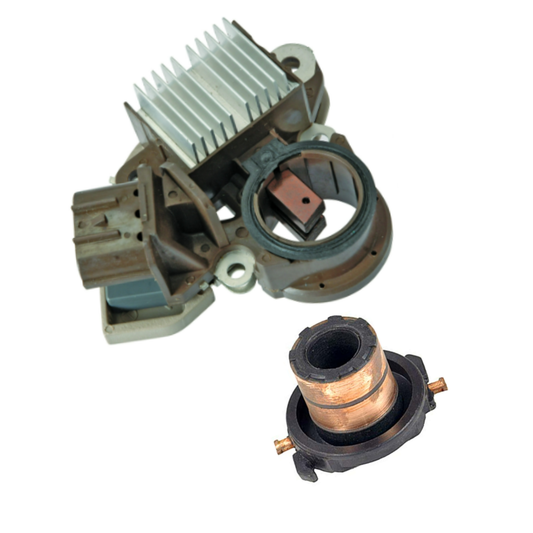

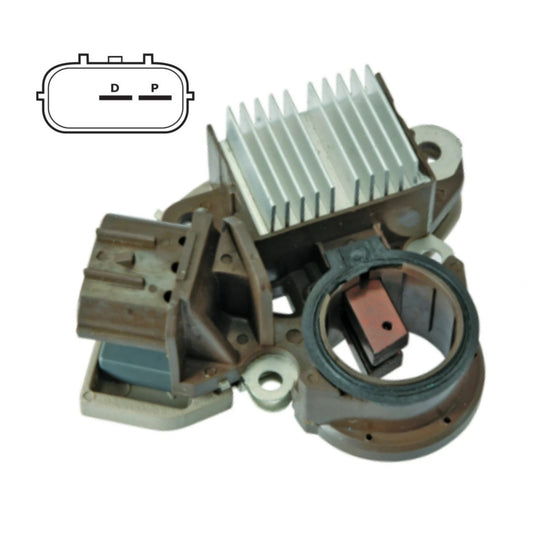

INT REGULATOR MAZDA D-D-P 1 W085-270 80033106 IM505

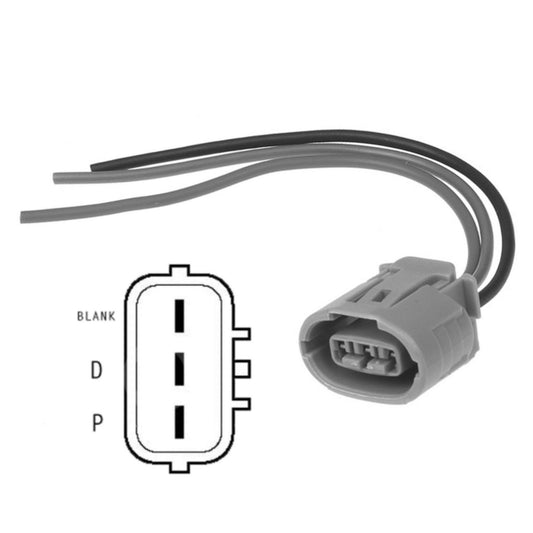

Plug 9801341
PULLEY NUT-17x1.5mm 1 W112-01
B+ TERM EXT MAZDA M8 1 W115-200
CAPACITOR PLATE CHRY 1 W115-218
SRE FRAME-11006 1 W125-57 7503313
DE FRAME-11006 1 W135-56
SLIP RING-13.5mm, 23mm OD 1 W165-10 710312 28-83852
Stator 72038341

This is a 110A Mitsubishi Alternator for the 2002-On Mazda MPV With the 3.0L Engine, Using a ôP-Dö Plug (Although Shaped Differently Than Previous "P-D" Types, Adding a 3rd Terminal Which is Unmarked).
