Alternator Rebuild Kit 2003-2008 Mazda 6 3.0L 110 Amp A3TJ0291 - 11007RK-A

Mazda 6 V6 3.0L 2968cc 2003-2008

Alternator Manufacturer and Factory #s
ACDelco 334-1515
Bosch Remanufactured AL4235X
Bosch Service Europe 0-986-UR0-179
DENSO Auto Parts 210-4217
Excel 10744
Hollander 60866
Lester 11007
Mazda AJ57-18-300, AJ57-18-300A, AJ57-18-300B, AJ57-18-300R00; AJ5718300, AJ5718300A, AJ5718300B, AJ5718300R00
Mitsubishi A003TJ0291, A003TJ0291A, A003TJ0291ZC, A3TJ0291, A3TJ0291A, A3TJ0291ZC
RELIANCE 41536
PIC# 203-423

Manufacture    Mitsubishi
Amperage Rating    110
Decoupled Or Clutch Pulley    No
Design    ED/IF
Family    A3TJ
Fan Type    Internal
Ground Type    Negative
Oe Manufacturer    Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock    2
Plug Code    341
Plug Type    341
Pulley Belt Type    Serpentine
Pulley Diameter    60
Pulley Groove Quantity    6
Pulley Type    S6
Regulator Type    Internal
Rotation Direction    Clockwise (Right)
Type    Alternator
Voltage    12

6303-2RS C3 BEARING W02X-11-1 54700
B8-23D BEARING-8x23x14mm W02X-50-1 52312
BRUSH-5x8x24mm CLIP W035-21
PULLEY 6GRV 60mm OD W055-91 79033061
RECTIFIER MAZDA W065-248 77033168 IMR12810
INT REGULATOR MAZDA D-D-P W085-270    80033106
Plug 9801341
PULLEY NUT-17x1.5mm W112-01
B+ TERM EXTENSION MAZDA M6 92033022 49-83511 W115-198
CAPACITOR PLATE W115-218
SLIP RING-13.5mm, 23mm OD W165-10 710312 28-83852
Stator 72038341
Frame, SRE,    7503314

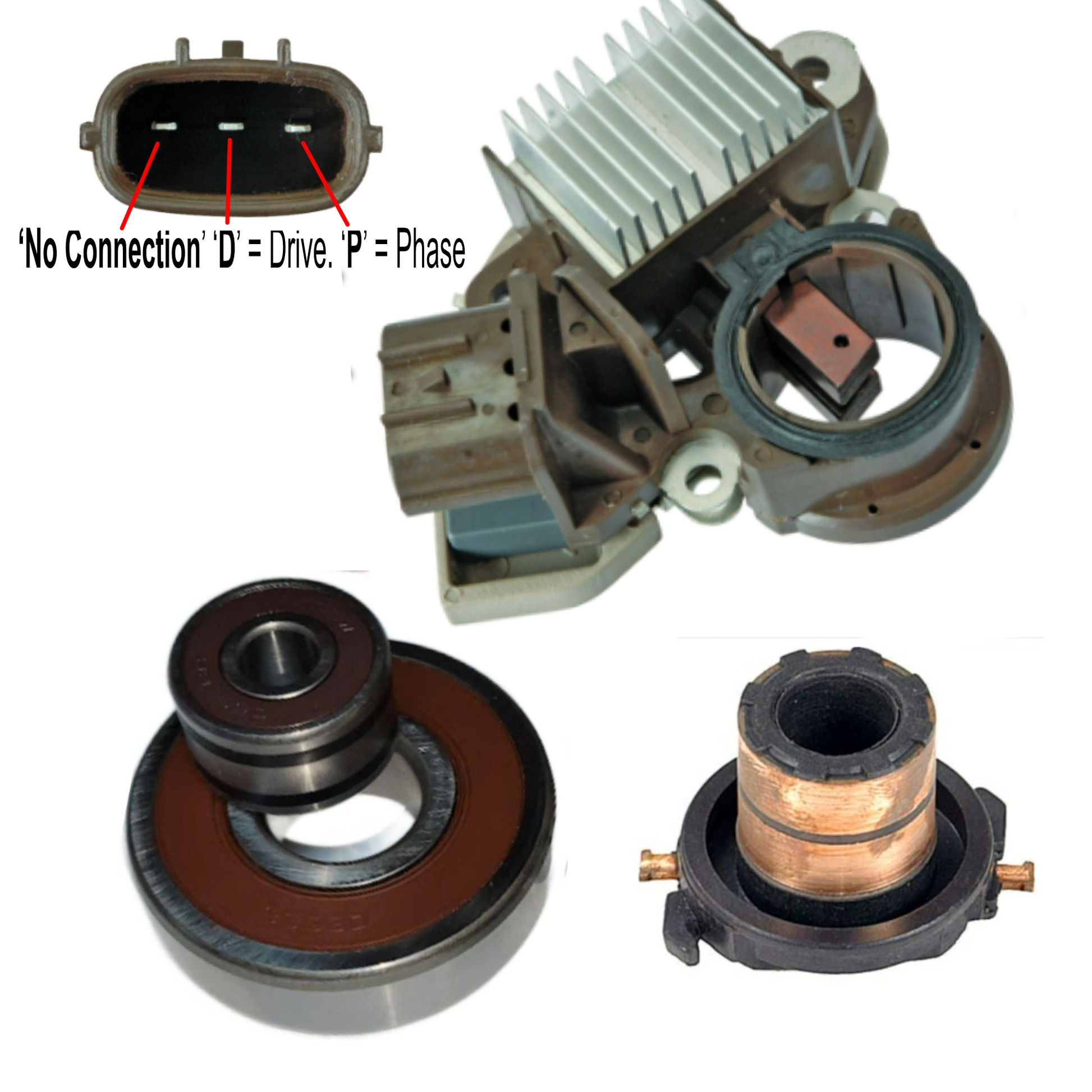

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4
• Here for Additional Part https://diyalternator.com/collections/mitsubishi-11007
