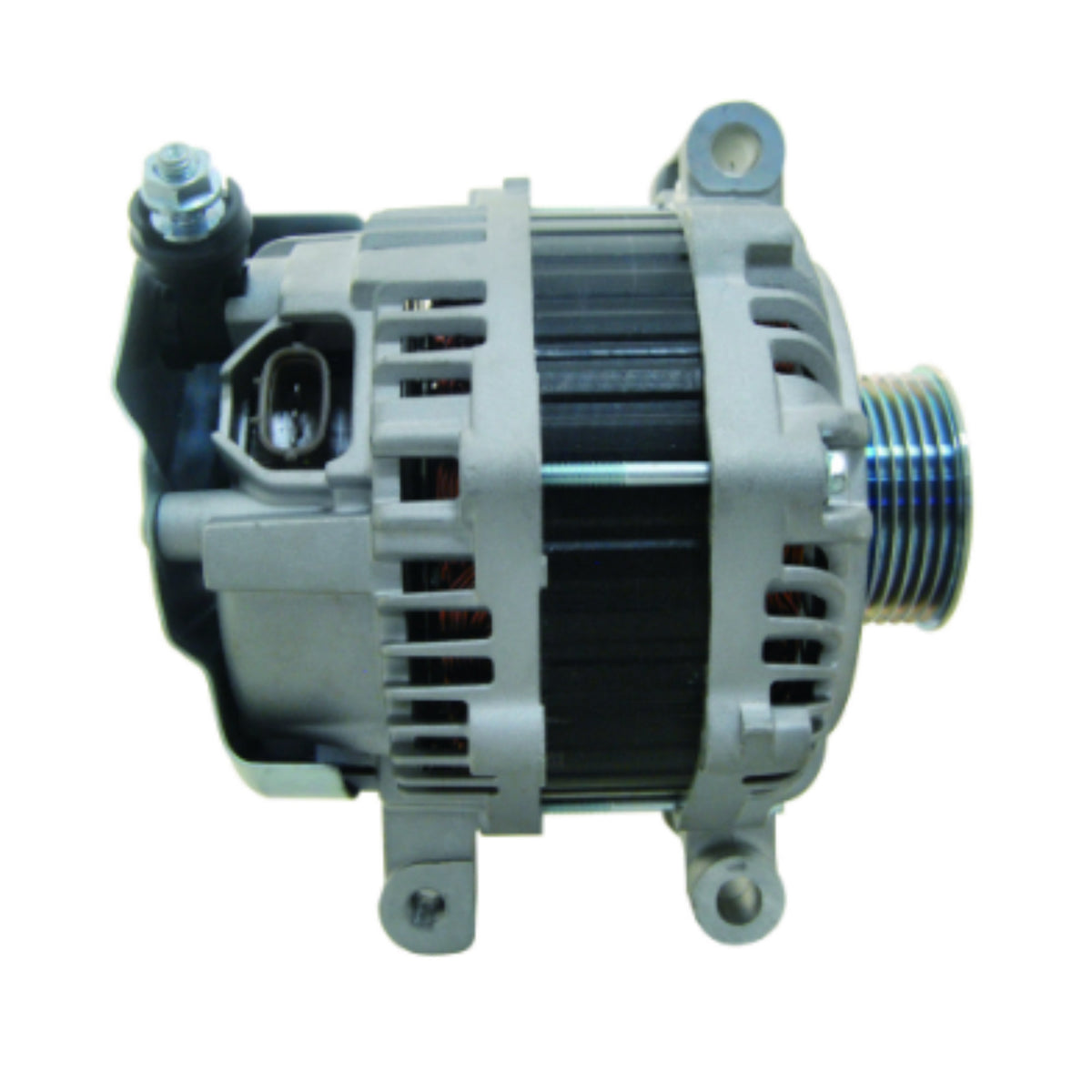

Alternator 2003-2008 Mazda 6 3.0L 110 Amp A3TJ0291 - 11007

Mazda 6 V6 3.0L 2968cc 2003-2008

Alternator Manufacturer and Factory #s
ACDelco 334-1515
Bosch Remanufactured AL4235X
Bosch Service Europe 0-986-UR0-179
DENSO Auto Parts 210-4217
Excel 10744
Hollander 60866
Lester 11007
Mazda AJ57-18-300, AJ57-18-300A, AJ57-18-300B, AJ57-18-300R00; AJ5718300, AJ5718300A, AJ5718300B, AJ5718300R00
Mitsubishi A003TJ0291, A003TJ0291A, A003TJ0291ZC, A3TJ0291, A3TJ0291A, A3TJ0291ZC
RELIANCE 41536
PIC# 203-423

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design ED/IF
Family A3TJ
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 341
Plug Type 341
Pulley Belt Type Serpentine
Pulley Diameter 60
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

6303-2RS C3 BEARING W02X-11-1 54700
B8-23D BEARING-8x23x14mm W02X-50-1 52312
BRUSH-5x8x24mm CLIP W035-21
PULLEY 6GRV 60mm OD W055-91 79033061
RECTIFIER MAZDA W065-248 77033168 IMR12810
INT REGULATOR MAZDA D-D-P W085-270 80033106
Plug 9801341
PULLEY NUT-17x1.5mm W112-01

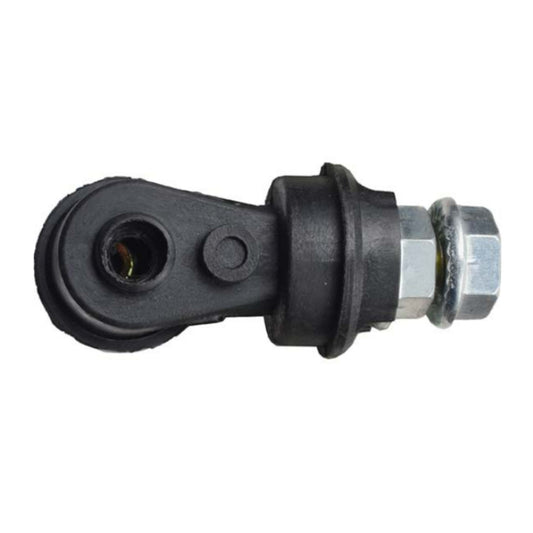

B+ TERM EXTENSION MAZDA M6 92033022 49-83511 W115-198
CAPACITOR PLATE W115-218
SLIP RING-13.5mm, 23mm OD W165-10 710312 28-83852
Stator 72038341
Frame, SRE, 7503314
