Alternator Rebuild Kit for Mazda3 Mazda6 CX-5 A5TL0491 - 20288ARK-A

As a complete unit all versions of this alternator is fully interchangeable but may have different internal components. For rebuilding, you will need to know which version you have.  If you no longer can match to an original equipment #, then you will have to verify your kit and/or parts visually (dis-assemble and inspect). Any aftermarket or factory # can have either version - Thank you

20288A,

Mazda A005TL0491, A005TL0491ZC, A005TL0491ZX, A5TL0491, A5TL0491ZC, A5TL0491ZX
3 L4 2.0L 1998CC 2014-2016
3 L4 2.5L 2488CC 2014-2016
6 L4 2.5L 2488CC 2014-2016
CX-5 L4 2.0L 1998CC 2013-2016
CX-5 L4 2.5L 2488CC 2014-2016

Additional possibility originally seen on these models but may be used as replacement on above models. If the kit in this description does not look like the correct kit, please see this link - Mazda A005TJ0591, A005TJ0591ZX, A5TJ0591, A5TJ0591ZX, A5TJ0591AX, A005TJ0591ZT, A5TJ0591ZT
3 L4 2.0L 1998CC 2017-2018
3 L4 2.5L 2488CC 2017-2018
6 L4 2.5L 2488CC 2017-2021
CX-3 L4 2.0L 1998CC 2016-2021
CX-5 L4 2.5L 2488CC 2017-2022
MX-5 Miata L4 2.0L 1998CC 2016-2022
Scion
iA L4 1.5L 1496CC 2016
Toyota
Yaris L4 1.5L 1496CC 2019-2020
Yaris iA L4 1.5L 1496CC 2017-2018

Alternator Manufacturer and Factory #s for 20288A
Bosch Aftermarket AL4246X (Reman)
Bosch Service Europe 0-986-084-990, 0-986-CR6-251, 0-986-UR6-251
DENSO Auto Parts 210-4002
Lester 20288
Mazda PE01-18-300, PEAR-18-300, PEAR-18-300R00, PEDD-18-300
Mitsubishi A005TL0491, A005TL0491ZC, A005TL0491ZX, A5TL0491, A5TL0491ZC, A5TL0491ZX
WAS BOM    20288, PEDD-18-300
PIC# 203-636 (with IM630)

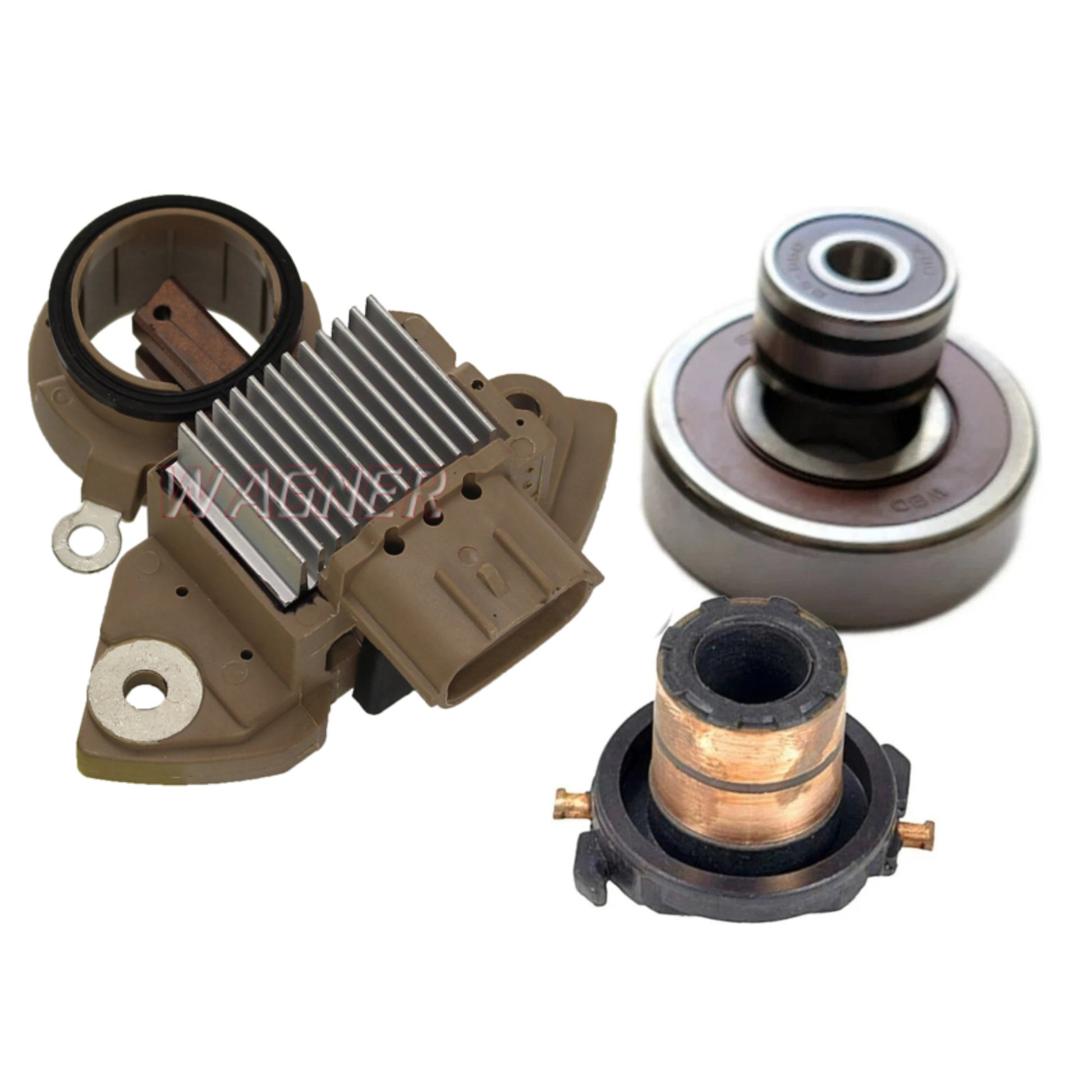

• Voltage Regulator with Brushes - Specifications: A-Circuit, Low Side Drive Regulator, D-P Terminals, 14.40 Vset, Mitsubishi ED/IF Alternators, D Terminal is Driver Signal Input, use VRC101-26 For Bench Test, Field Rating 5 Amps, typical Vsat is 1.00 Volts, @ 5 Amps, 12 Volt System // Replaces: Mazda PE01, PE01-18-300, PE0118300R00, PEDD, PEDD-18-300, PEDD18300R00, SH01-18-300; Other 80033151 VRH2009-209 230-48164 W085-391, 196-115, GNR-M104, 230-48164 -  IM630

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4
  Here for Additional Part https://diyalternator.com/collections/mitsubishi-20288
