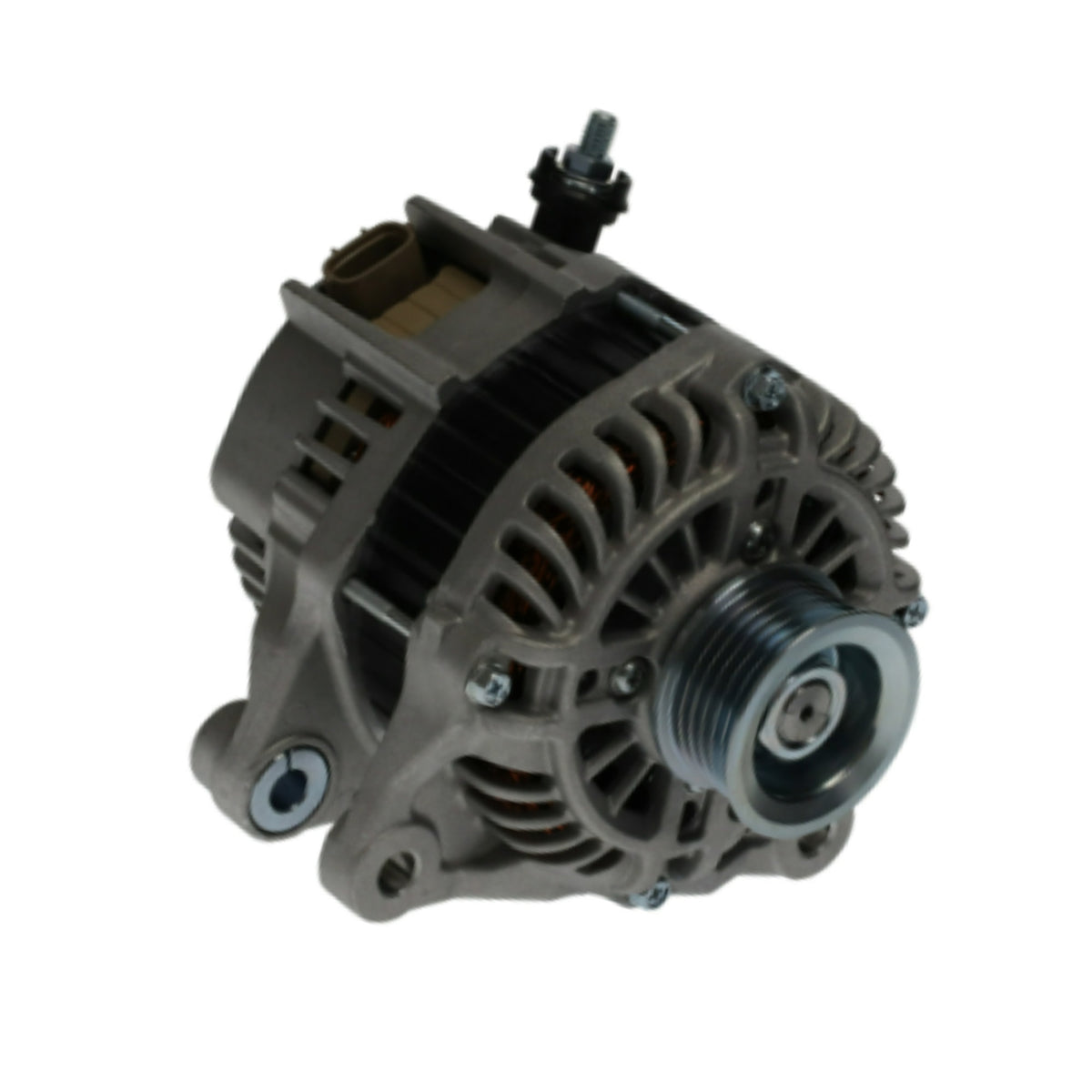

Alternator Mazda3 Mazda6 CX-3 CX-5 MX-5 Miata Yaris A5TL0491 A5TJ0591 - 20288

As a complete unit this alternator is fully interchangeable. For rebuilding, you will need to know which version you Have. If you no longer can match to an original equipment #, then you will have to verify your kit and/or parts visually (dis-assemble and inspect). Any aftermarket or factory # can have either version - Thank you

20288A

Mazda A005TL0491, A005TL0491ZC, A005TL0491ZX, A5TL0491, A5TL0491ZC, A5TL0491ZX
3 L4 2.0L 1998CC 2014-2016
3 L4 2.5L 2488CC 2014-2016
6 L4 2.5L 2488CC 2014-2016
CX-5 L4 2.0L 1998CC 2013-2016
CX-5 L4 2.5L 2488CC 2014-2016

20288B

Mazda A005TJ0591, A005TJ0591ZX, A5TJ0591, A5TJ0591ZX, A5TJ0591AX, A005TJ0591ZT, A5TJ0591ZT
3 L4 2.0L 1998CC 2017-2018
3 L4 2.5L 2488CC 2017-2018
6 L4 2.5L 2488CC 2017-2021
CX-3 L4 2.0L 1998CC 2016-2021
CX-5 L4 2.5L 2488CC 2017-2022
MX-5 Miata L4 2.0L 1998CC 2016-2022
Scion
iA L4 1.5L 1496CC 2016
Toyota
Yaris L4 1.5L 1496CC 2019-2020
Yaris iA L4 1.5L 1496CC 2017-2018

Alternator Manufacturer and Factory #s for 20288A
Bosch Aftermarket AL4246X (Reman)
Bosch Service Europe 0-986-084-990, 0-986-CR6-251, 0-986-UR6-251
DENSO Auto Parts 210-4002
Lester 20288
Mazda PE01-18-300, PEAR-18-300, PEAR-18-300R00, PEDD-18-300
Mitsubishi A005TL0491, A005TL0491ZC, A005TL0491ZX, A5TL0491, A5TL0491ZC, A5TL0491ZX
PIC# 203-636 (with IM630)

Alternator Manufacturer and Factory #s for 20288B
Bosch Aftermarket AL4246X (Reman)
DENSO Auto Parts 210-4352
Lester 20288
Mazda P31H-18-300B, P51X-18-300, P51X-18-300B, P53N-18-300B, P53N-18-300C, P31H-18-300R00, P31H-B, P51X-B, P51X18300R00, P53N-B
Mitsubishi A005TJ0591, A005TJ0591ZX, A5TJ0591, A5TJ0591ZX, A5TJ0591AX, A005TJ0591ZT, A5TJ0591ZT
Scion 27060-WB001, 27060-WB002
PIC# 203-636A 203-5620 (with IM505)

Manufacture Mitsubishi
Amperage Rating 100
Decoupled Or Clutch Pulley No
Design ED/IF
Family A5TL
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 341
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 51.06
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

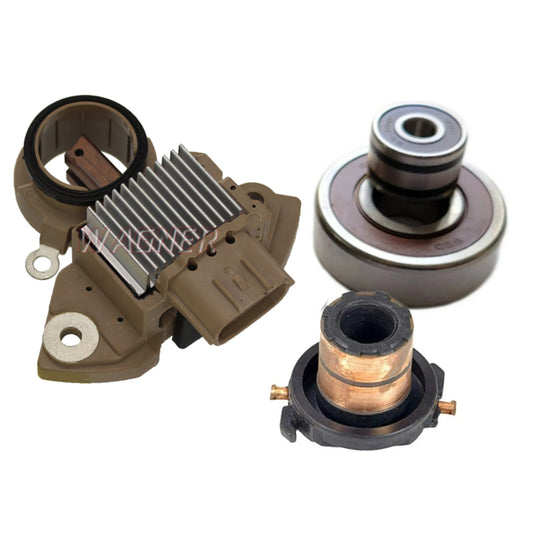

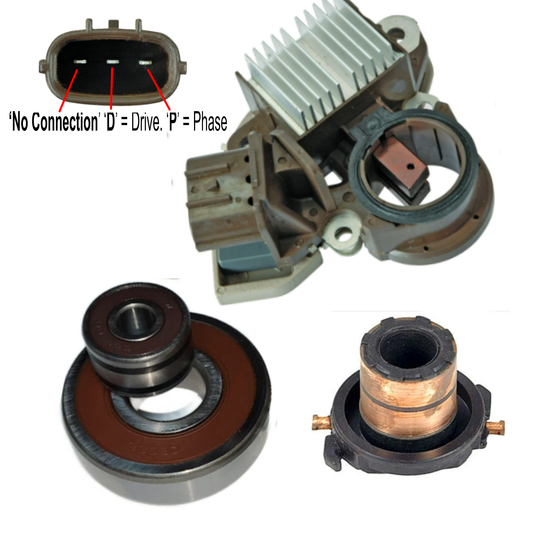

Alternator Rebuild Kit 20288ARK-A 20288BRK-B
6303-2RS C3 BEARING 1 W02X-11-1
B8-23D BEARING-8x23x14mm 1 W02X-50-1
BRUSH-5x8x24mm W035-09
RECT-MAZDA 1 W065-307 W065-272
REG-20288 MAZDA 3 PD 1 W085-391 W085-270
PULLEY NUT-17x1.5mm 1 W112-01
CAPACITOR PLATE 1 W115-218
SLIP RING-13.5mm, 23mm OD 1 W165-10
