Alternator Rebuild Kit Mazda3 Mazda6 CX-3 CX-5 MX-5 Yaris A5TJ0591 - 20288BRK-A

As a complete unit all versions of this alternator is fully interchangeable but may have different internal components. For rebuilding, you will need to know which version you have.  If you no longer can match to an original equipment #, then you will have to verify your kit and/or parts visually (dis-assemble and inspect). Any aftermarket or factory # can have either version - Thank you

Mazda A005TJ0591, A005TJ0591ZX, A5TJ0591, A5TJ0591ZX, A5TJ0591AX, A005TJ0591ZT, A5TJ0591ZT
3 L4 2.0L 1998CC 2017-2018
3 L4 2.5L 2488CC 2017-2018
6 L4 2.5L 2488CC 2017-2021
CX-3 L4 2.0L 1998CC 2016-2021
CX-5 L4 2.5L 2488CC 2017-2022
MX-5 Miata L4 2.0L 1998CC 2016-2022
Scion
iA L4 1.5L 1496CC 2016
Toyota
Yaris L4 1.5L 1496CC 2019-2020
Yaris iA L4 1.5L 1496CC 2017-2018

Additional possibility originally seen on these models but may be used as replacement on above models. If the kit in this description does not look like the correct kit, please see this link Mazda A005TL0491, A005TL0491ZC, A005TL0491ZX, A5TL0491, A5TL0491ZC, A5TL0491ZX
3 L4 2.0L 1998CC 2014-2016
3 L4 2.5L 2488CC 2014-2016
6 L4 2.5L 2488CC 2014-2016
CX-5 L4 2.0L 1998CC 2013-2016
CX-5 L4 2.5L 2488CC 2014-2016

Alternator Manufacturer and Factory #s for 20288B
Bosch Aftermarket AL4246X (Reman)
DENSO Auto Parts 210-4352
Lester 20288
Mazda P31H-18-300B, P51X-18-300, P51X-18-300B, P53N-18-300B, P53N-18-300C, P31H-18-300R00, P31H-B, P51X-B, P51X18300R00, P53N-B
Mitsubishi A005TJ0591, A005TJ0591ZX, A5TJ0591, A5TJ0591ZX, A5TJ0591AX, A005TJ0591ZT, A5TJ0591ZT
Scion 27060-WB001, 27060-WB002
PIC# 203-636A 203-5620 (with IM505)

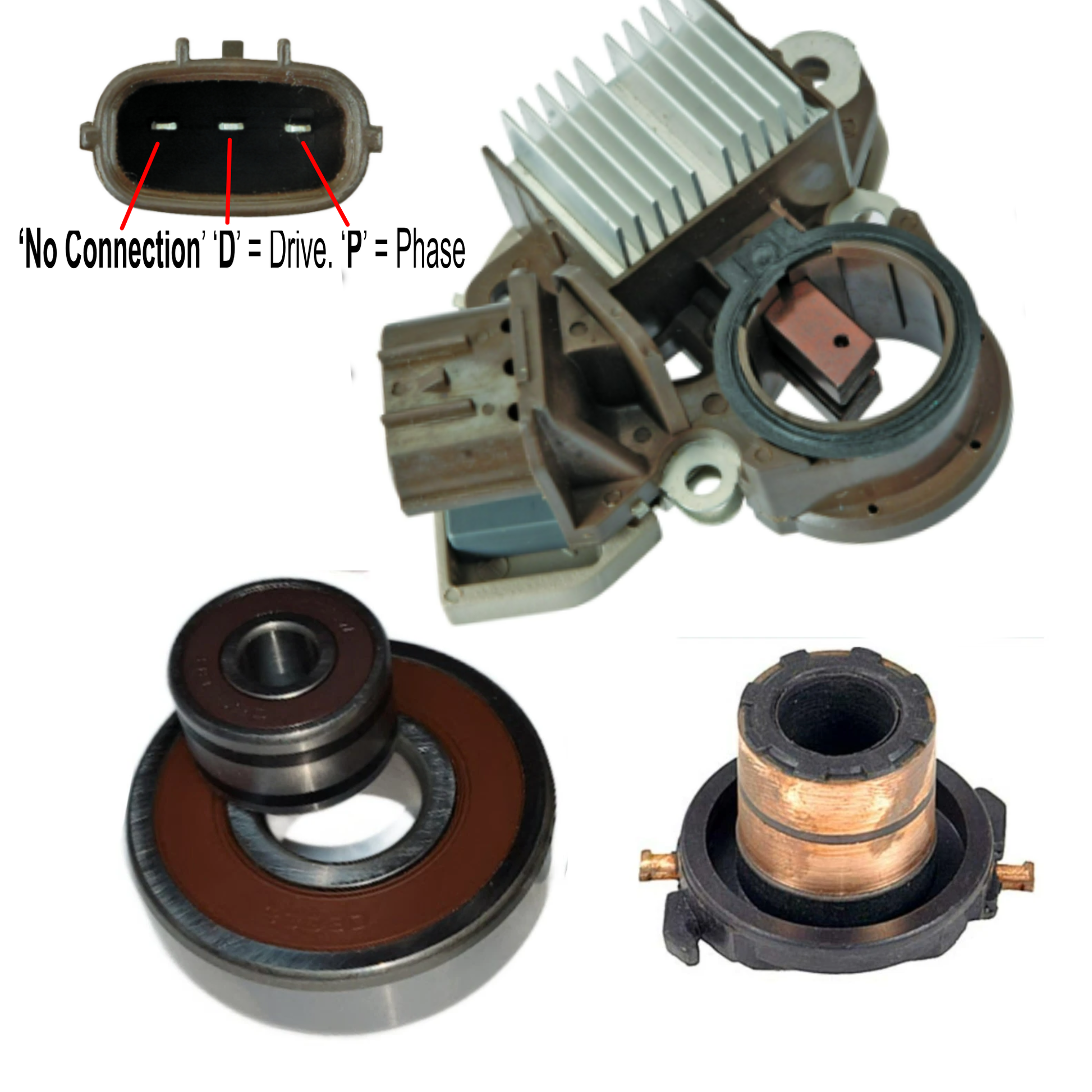

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852

• Drive End DE Bearing 54700 17x47x14mm 6303-2RS - 6-303-4

• Rotor SRE Bearing 52312 8X23X14mm SC8A05LHI - 10-800-4
  Here for Additional Part https://diyalternator.com/collections/mitsubishi-20288
