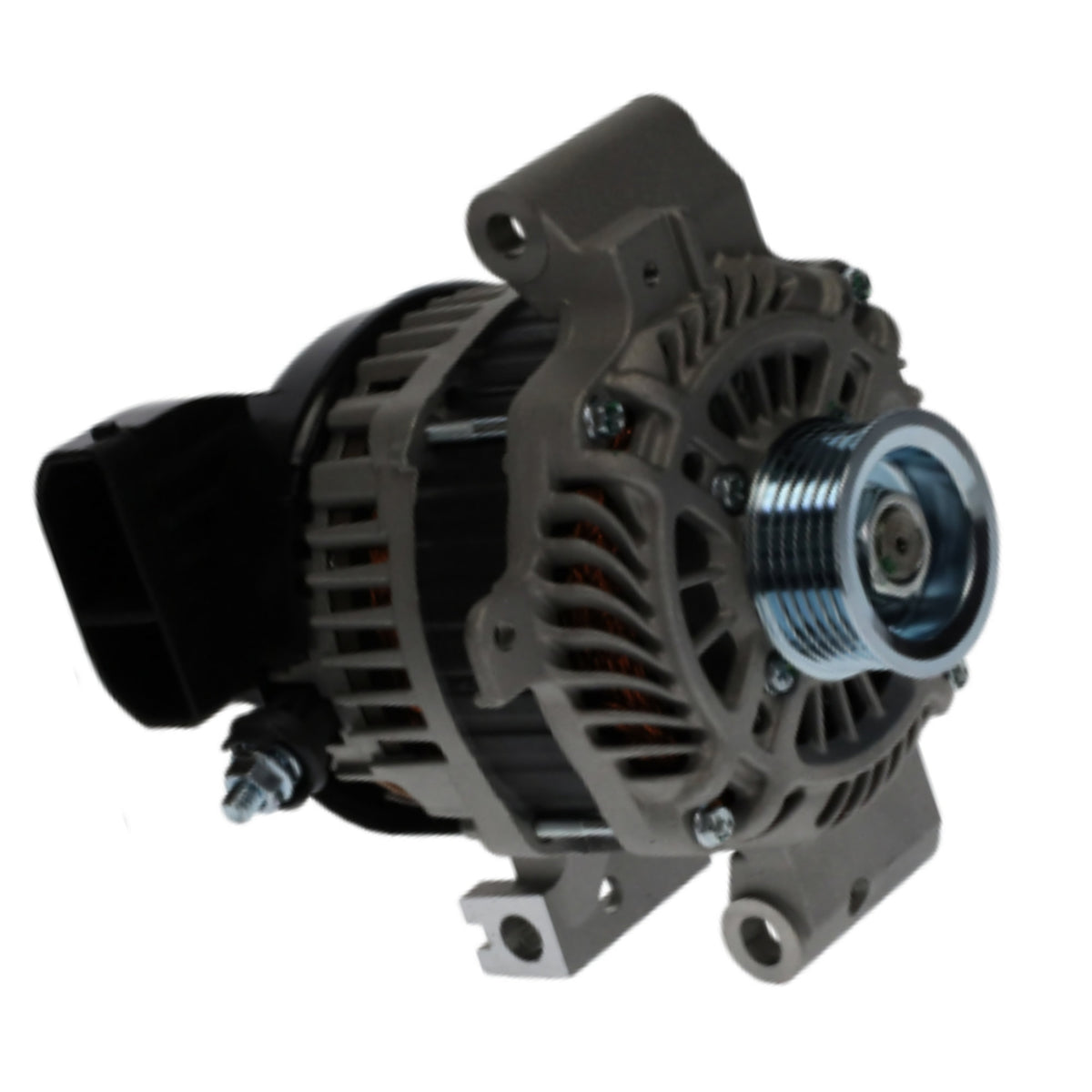

Alternator 2006-2008 Mazda 6 2.3L NA, Miata, 2009-2013 Mazda6 2.5L - 11168

Mazda Car
6 L4 2.3L 2260cc Naturally Aspirated 2006-2008
6 L4 2.5L 2488cc 2009-2013
MX-5 Miata L4 2.0L 2000cc 2006-2008

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4239X
ERA 209352
Excel 10937
Hollander 55871
Lester 11168
Mazda L3P9, L3P9-18-300A, L3P9-18-300B, L3P9-18-300C, L3P9-18-300R, L3P9-18-300R-0C, L3P9-18-300D, L3P9-18-300R0C
Mitsubishi A002TJ0391, A002TJ0391A, A002TJ0391B, A002TJ0391CMU, A2TJ0391, A2TJ0391A, A2TJ0391B, A002TJ0391C, A2TJ0391C
PIC# 203-5131 203-5131B

Manufacture Mitsubishi
Amperage Rating 100
Decoupled Or Clutch Pulley No
Design ED/IF
Family A2TJ
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 12
Plug Code 341
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Diameter 56.2
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

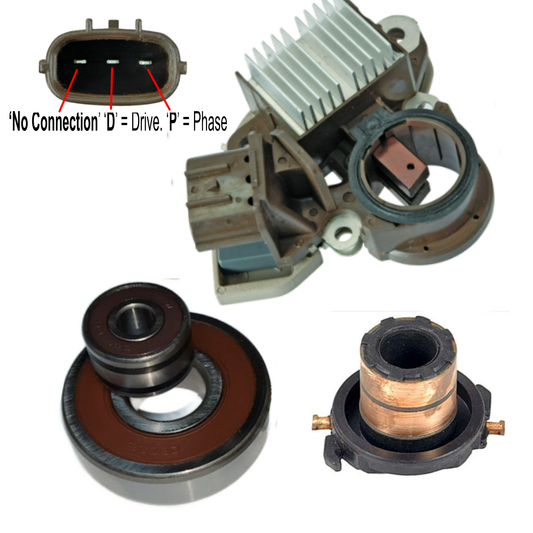

Alternator Rebuild Kit - 11168RK-A
COVER DUCT-11168 MAZDA 6 1 W015-115
6303-2RS C3 BEARING 1 W02X-11-1 54700
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312
BRUSH-5x8x24mm CLIP 1 W035-21 38-8307x2

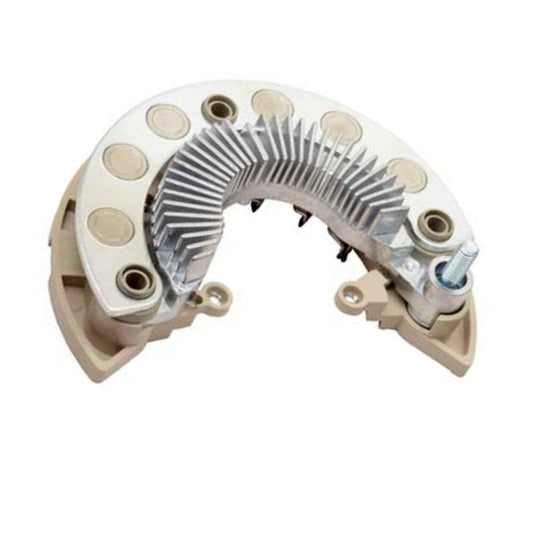

RECTIFIER MAZDA M6 1 W065-245 77033154 IMR12204

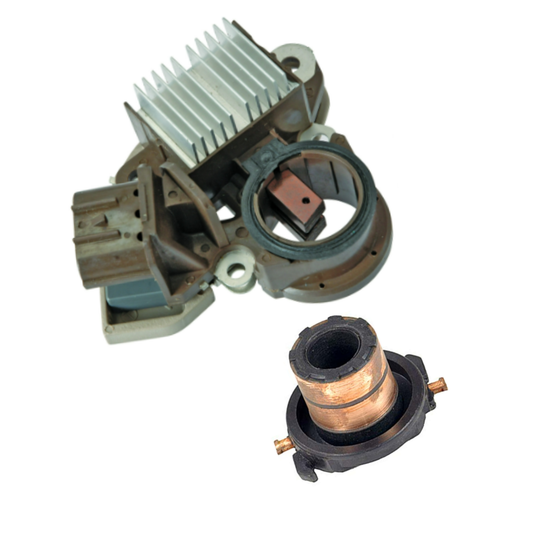

REGULATOR MAZDA D-D-P 1 W085-270 80033106 IM505
Pulley 79033041
PULLEY NUT-17x1.5mm 1 W112-01
CAPACITOR PLATE 1 W115-218
SLIP RING-13.5mm, 23mm OD 1 W165-10 710312 28-83852
Rotor 70031039
