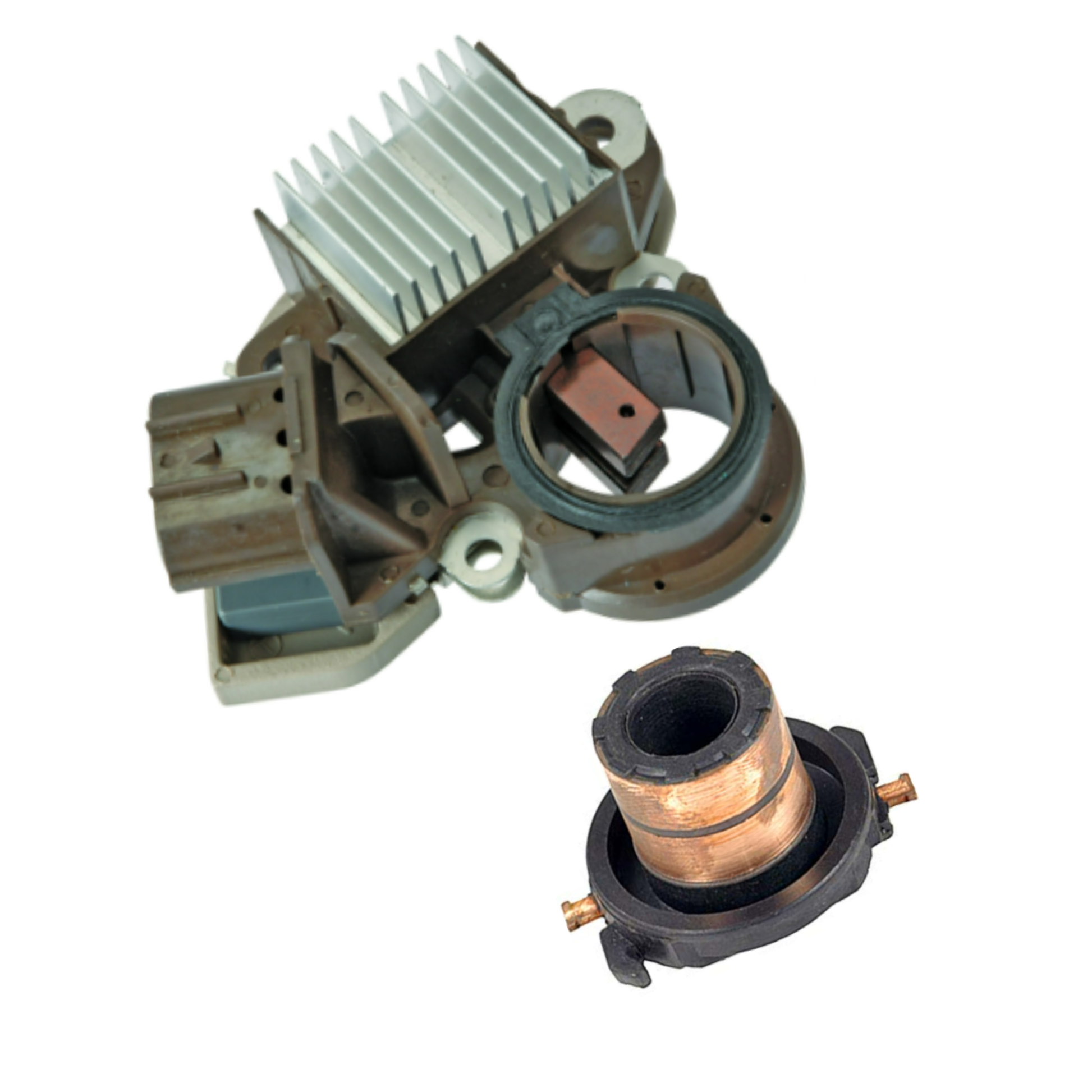

Alternator Regulator Brushes Sliprings Kit 2007-2012 CX-7, 2012-2015 Mazda 5 A3TJ1191 - 11330RK

Mazda
5 L4 2.5L 2488CC 2012-2015
CX-7 L4 2.3L 2260CC 2007-2012
CX-7 L4 2.5L 2488CC 2010-2012
MX-5 Miata L4 2.0L 2000CC 2014

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4240X
Bosch Service Europe 0986UR1758
Excel 10939
Hollander 50150
Lester 11330
Lucas Electrical Europe LRA04025
Mazda L33G-18-300, L33G-18-300A, L33G-18-300R-00, L33G-18-300R0A
Mitsubishi A003TJ1191, A003TJ1191A, A3TJ1191, A3TJ1191A

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
