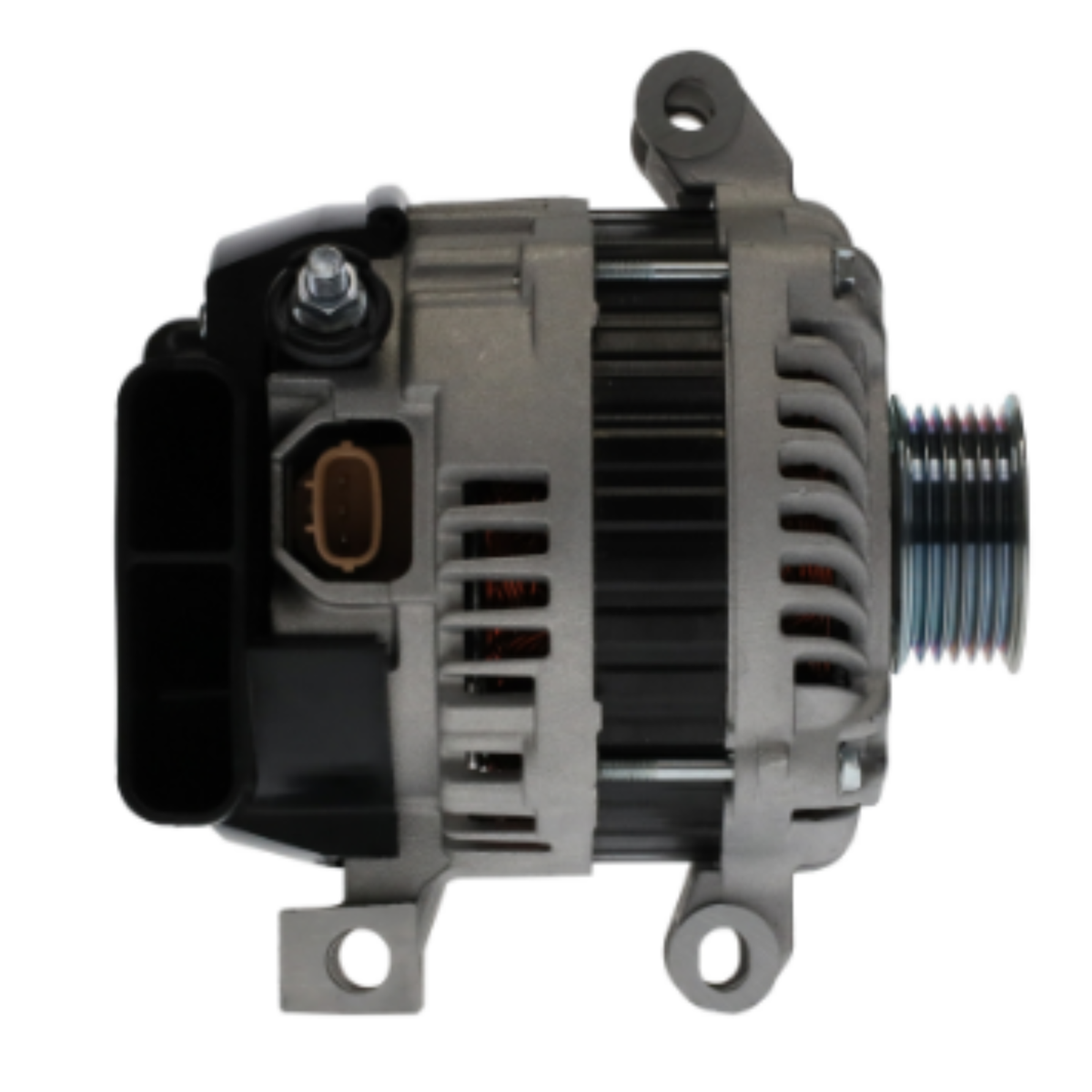

Alternator 2007-2012 CX-7, 2012-2015 Mazda 5 A3TJ1191 - 11330

Mazda
5 L4 2.5L 2488CC 2012-2015
CX-7 L4 2.3L 2260CC 2007-2012
CX-7 L4 2.5L 2488CC 2010-2012
MX-5 Miata L4 2.0L 2000CC 2014

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4240X
Bosch Service Europe 0986UR1758
Excel 10939
Hollander 50150
Lester 11330
Lucas Electrical Europe LRA04025
Mazda L33G-18-300, L33G-18-300A, L33G-18-300R-00, L33G-18-300R0A
Mitsubishi A003TJ1191, A003TJ1191A, A3TJ1191, A3TJ1191A

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design ED/IF
Family A3TJ
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 341
Plug Type 341
Pulley Belt Type Serpentine
Pulley Diameter 55
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

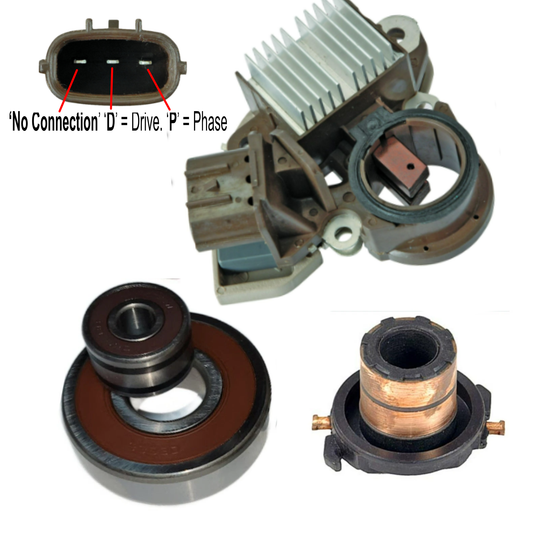

Alternator Rebuild Kit 11330RK-A
6303-2RS C3 BEARING 1 W02X-11-1 54700
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312
BRUSH-5x8x24mm CLIP 1 W035-21 38-8307x2
Pulley 79033041

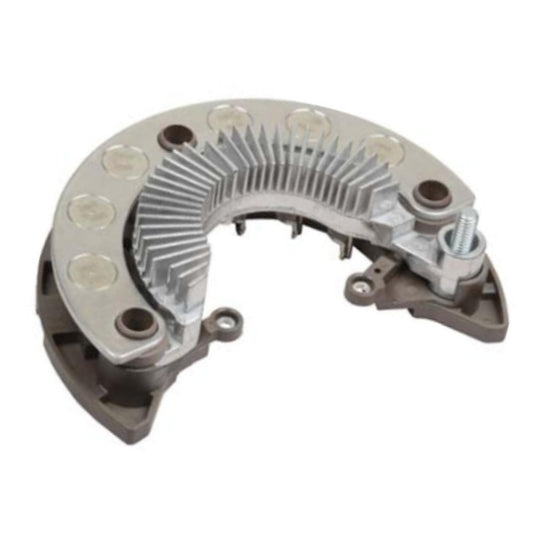

RECTIFIER NISSAN AVL 1 W065-240 77033159

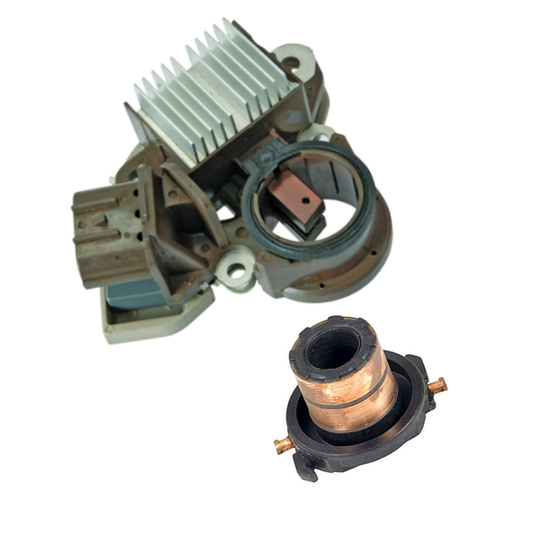

REGULATOR MAZDA D-D-P 1 W085-270 80033106
Plug 9801341
PULLEY NUT-17x1.5mm 1 W112-01
CAPACITOR PLATE 1 W115-218
