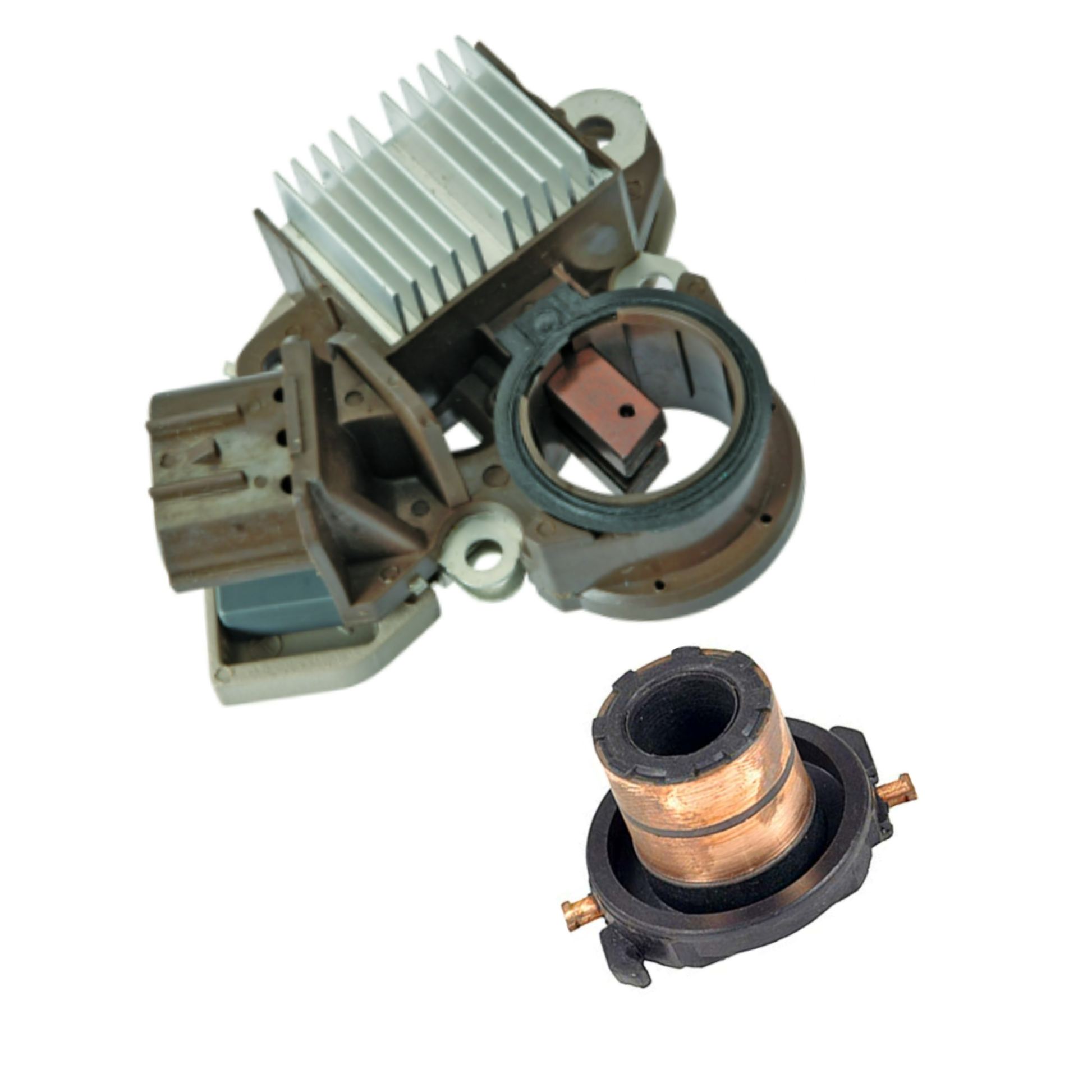

Alternator Regulator Brushes Sliprings Kit 2010-2013 Mazda 3 2.0L A2TJ0791 - 11342RK

Mazda 3 L4 2.0L 2000CC 2010-2013

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4241X
Bosch Service Europe 0986UR6046
Lester 11342
Mazda LF8J, LF8J-18-300, LF8J-18-300R00
Mitsubishi A002TJ0791, A2TJ0791
PIC# 203-5184

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
  Here for Additional Part https://diyalternator.com/collections/mitsubishi-11342
