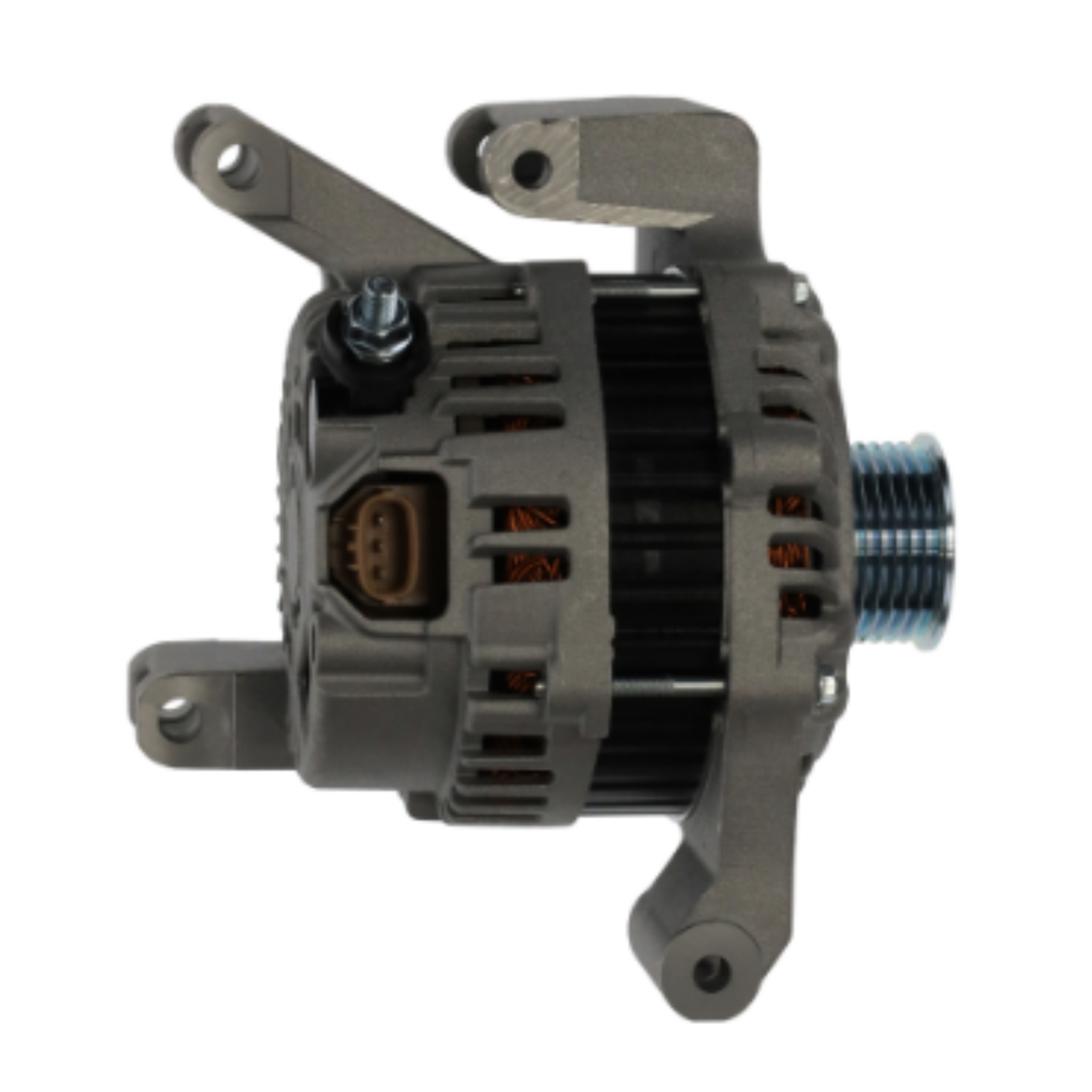

Alternator 2010-2013 Mazda 3 2.0L A2TJ0791 - 11342

Mazda 3 L4 2.0L 2000CC 2010-2013

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4241X
Bosch Service Europe 0986UR6046
Lester 11342
Mazda LF8J, LF8J-18-300, LF8J-18-300R00
Mitsubishi A002TJ0791, A2TJ0791
PIC# 203-5184

Manufacture Mitsubishi
Amperage Rating 100
Decoupled Or Clutch Pulley No
Design ED/IF
Family A2TJ
Fan Type Internal
Oe Manufacturer Mitsubishi
Outside Pulley Diameter 50.3
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Code 341
Plug Orientation Side
Plug Type 341
Pulley Belt Type Serpentine
Pulley Diameter 50.3
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

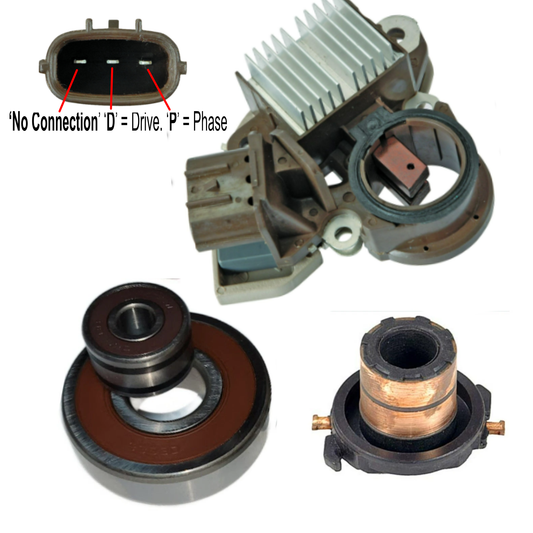

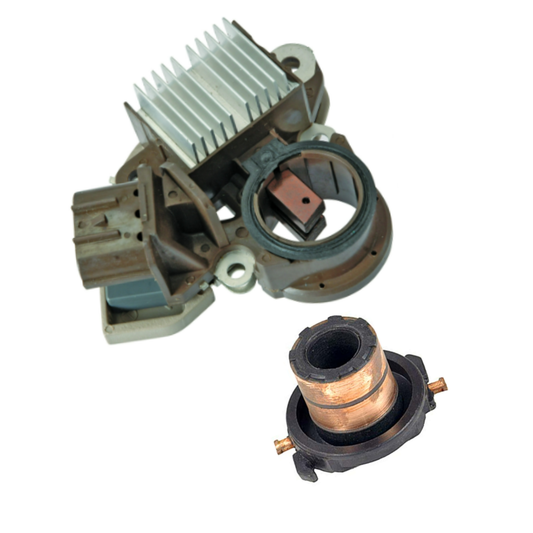

Alternator Rebuild Kit 11342RK-A
6303-2RS C3 BEARING W02X-11-1 54700
B8-23D BEARING-8x23x14mm W02X-50-1 52312
BRUSH-5x8x24mm CLIP W035-21 38-8307x2
RECTIFIER MAZDA 100A M6 W065-245 77033176
REGULATOR MAZDA D-D-P W085-270 80033106 IM505
Plug 9801341
PULLEY NUT-17x1.5mm W112-01
SLIP RING-13.5mm, 23mm OD W165-10 28-83852
Rotor 7003952
Stator 72038372
