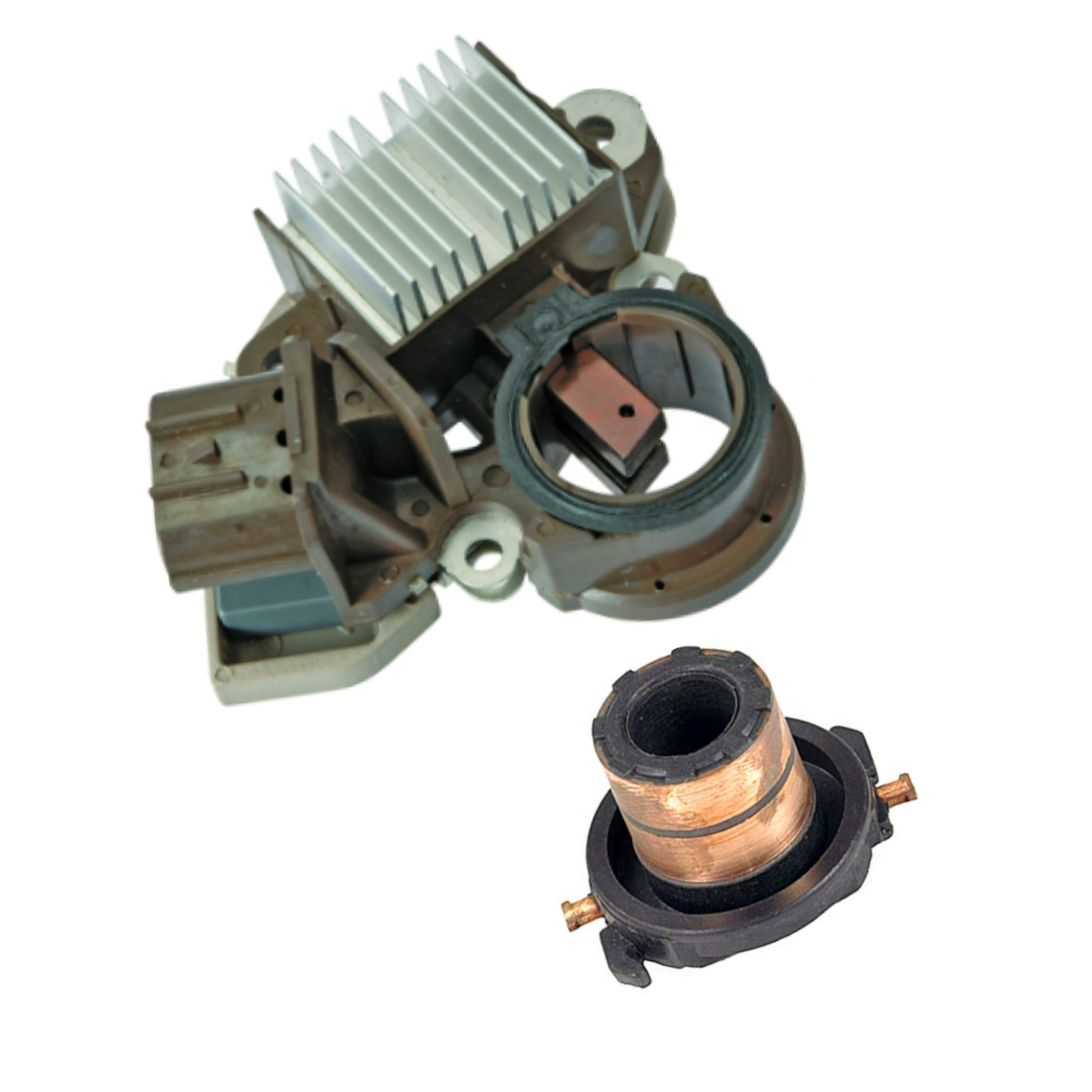

Alternator Regulator Brushes Sliprings Kit Mazdaspeed 2007-2009 Mazda3 2006-2007 Mazda6 Turbo - 11169RK

Mazda Car
3 L4 2.3L 2260cc Turbocharged 2007-2009
6 L4 2.3L 2260cc Turbocharged 2006-2007

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-1249
Bosch Aftermarket AL4247X (Reman)
Bosch Service Europe 0-986-UR6-406
DENSO Auto Parts 210-4332
ERA 209349
Excel 10938
Hollander 50118
Lester 11169
Mazda L3M6-18-300A, L3M6-18-300B, L3M6-18-300C, L3M6-18-300R-0A
Mitsubishi A003TJ1181, A003TJ1181A, A003TJ1181B, A3TJ1181, A3TJ1181A, A3TJ1181B
PIC# 203-5133

• Voltage Regulator 12 Volt, A-Circuit, (N/C)-D-P Terminals, 14.4 Voltage Set Point • 3-pin connector but only D-P are used: (N/C) = No connection. D = Drive. P = Phase • IM505 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators • With capacitor plate • Stator activated - // Replaces: Mazda AJ51-18-W70, Mitsubishi A866X50572, 505, 592-8630T, Other: 230-48122, VRH2009-114, T52017, W085-270, 196-104, GNR-M063, 80033106 - IM505

• SlipRings 13.5mm ID x 22.7mm OD -W165-10, 193-501 - 28-83852
