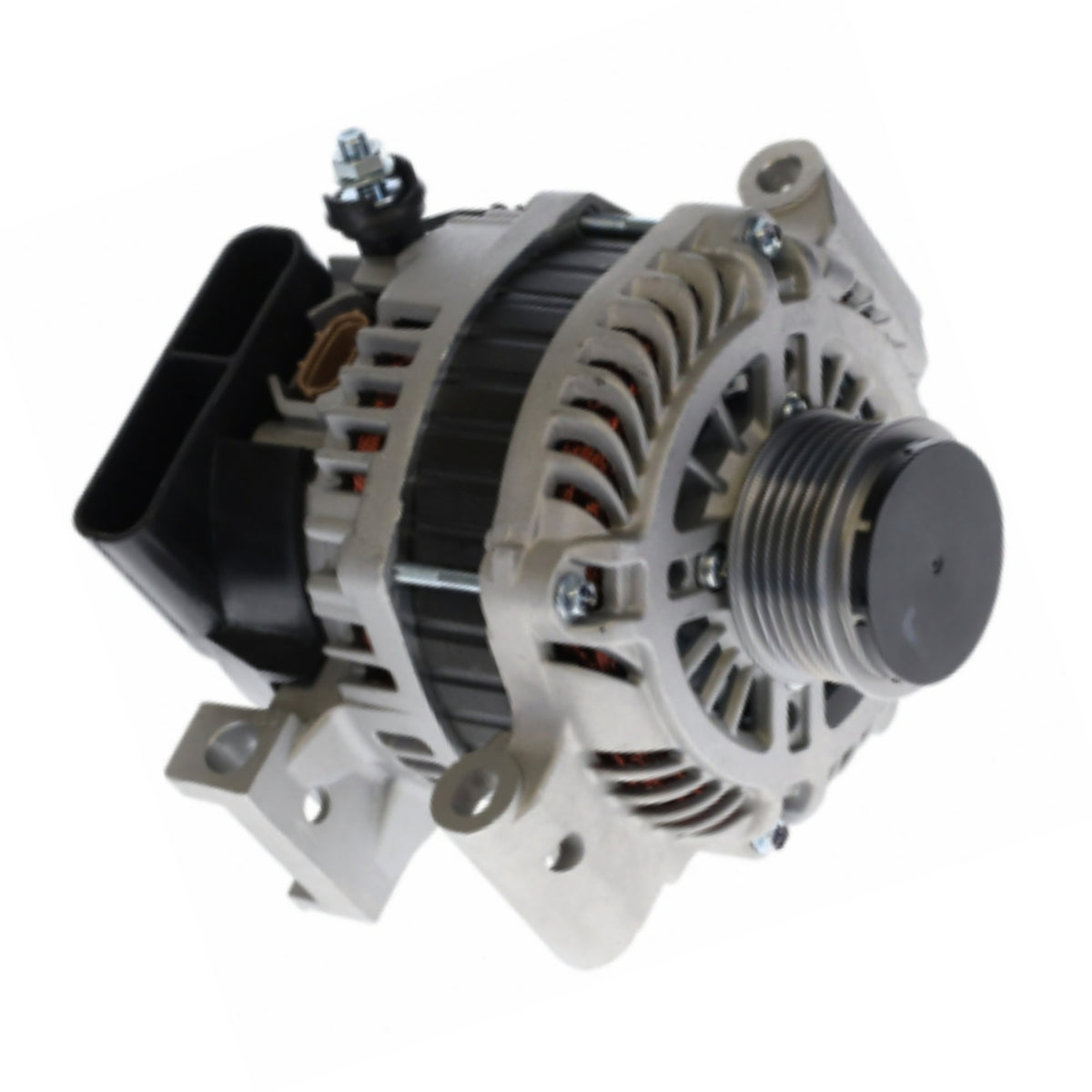

Alternator Mazdaspeed 2007-2009 Mazda3 2006-2007 Mazda6 Turbo - 11169

Mazda Car
3 L4 2.3L 2260cc Turbocharged 2007-2009
6 L4 2.3L 2260cc Turbocharged 2006-2007

Alternator Manufacturer and Factory #s
Beck Arnley Remanufactured 186-1249
Bosch Aftermarket AL4247X (Reman)
Bosch Service Europe 0-986-UR6-406
DENSO Auto Parts 210-4332
ERA 209349
Excel 10938
Hollander 50118
Lester 11169
Mazda L3M6-18-300A, L3M6-18-300B, L3M6-18-300C, L3M6-18-300R-0A
Mitsubishi A003TJ1181, A003TJ1181A, A003TJ1181B, A3TJ1181, A3TJ1181A, A3TJ1181B
PIC# 203-5133

Manufacture Mitsubishi
Amperage Rating 110
Design IR/IF
Family A3TJ
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 3
Plug Code 341
Plug Type 341
Pulley Diameter 60
Pulley Type SC6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

Alternator Rebuild Kit 11169RK-A
6303-2RS C3 BEARING 1 W02X-11-1 54700
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312
BRUSH-5x8x24mm CLIP 1 W035-21 38-8307x2

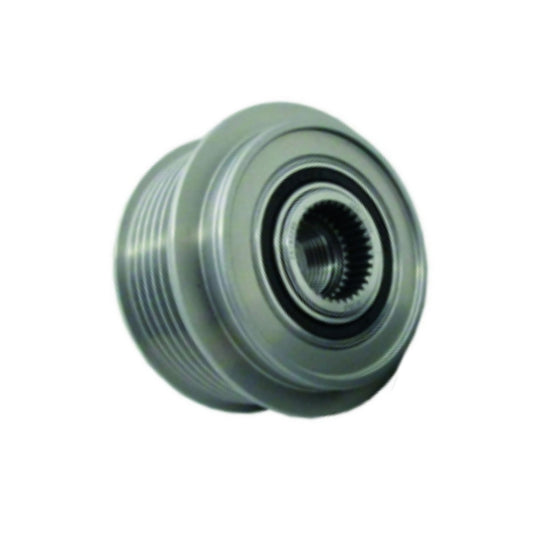

CL PULLEY 6GRV59 ZEN 1 W055-142 79033040

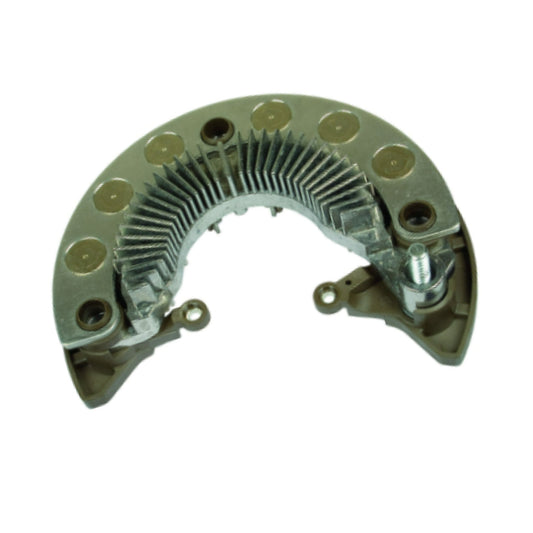

RECTIFIER AVL 1 W065-240 77033233
REGULATOR MAZDA D-D-P 1 W085-270 80033106
Plug 9801341
CAPACITOR PLATE CHRY 1 W115-218
PULLEY TOOL KIT-CLUTCH DECOUPL 1 W19-18
Slip Ring 710312 28-83852
Rotor 70031039
