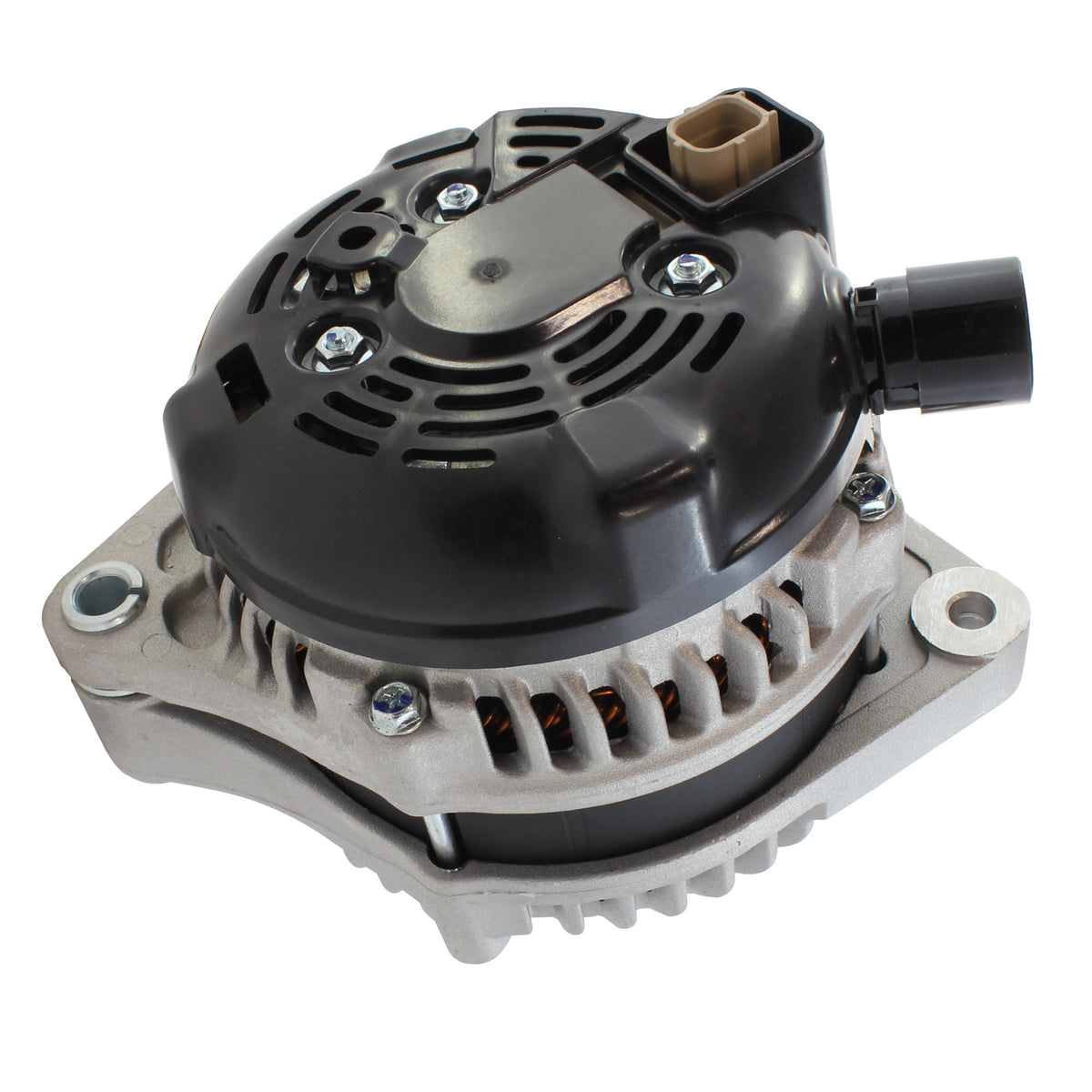

Alternator Acura RL TL TSX MDX ZDX, Honda Pilot Ridgeline Odyssey - 11391

These models with the 130 Amp Option
Acura Car
RL V6 3.7L 3664cc 2009-2012
TL V6 3.5L 3471cc 2009-2014
TL V6 3.7L 3664cc 2009-2014
TSX V6 3.5L 3471cc 2010-2014
Acura Truck
MDX V6 3.7L 3664cc 2010-2013
ZDX V6 3.7L 3664cc 2010-2013
Honda Truck
Pilot V6 3.5L 3471cc 2009-2011
Ridgeline V6 3.5L 3471cc 2009-2011
Honda Van
Odyssey V6 3.5L 3471cc 2008-2010

Alternator Manufacturer and Factory #s
ACDelco 334-2783
Acura 06311-RGW-505RM, 31100-RGW-A01, 31100-RGW-A01RM, CSF92
Arrowhead AND0484
Bosch Aftermarket AL1311X (Reman)
Bosch Service Europe 0-986-UR6-056
DENSO 104210-591, 104210-5910, 104210-592, 104210-5920, TN104210-5910, TN104210-5920
DENSO Auto Parts 210-0750
Excel 10878
Honda 31100-RGW-A01, 31100-RGW-A01RM, CSF92
Lester 11391
PIC# 290-5222B

Manufacture DENSO
Amperage Rating 130
Decoupled Or Clutch Pulley No
Design IR/IF
Fan Type Internal
Ground Type Negative
Mfr Series HAIRPIN
OE Manufacturer DENSO
Plug Clock 11
Plug Clock Rear View Main Mounting Ear At 6 O Clock 11
Plug Code 298
Plug Type 298
Pulley Belt Type Serpentine
Pulley Diameter 65
Pulley Groove Od 65
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Series HAIRPIN
Stator Type Hairpin
Type Alternator
Voltage 12

Alternator Rebuild Kit 11391RK-A
Bearings 53514 54700
Brush Holder Assy 74909206
Brush 7390901
Cover or Shield 92909043

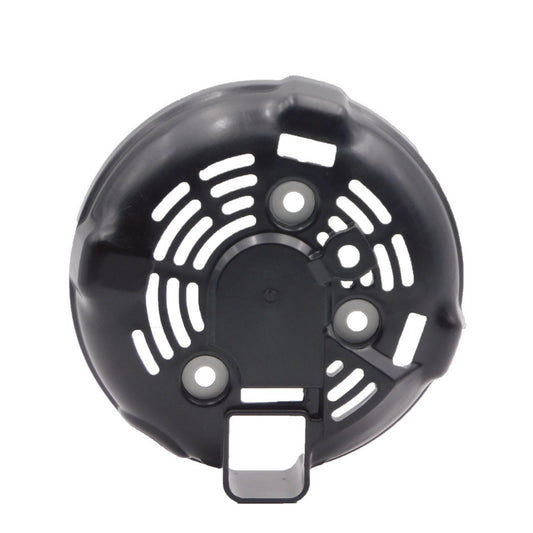

Cover 84909083 w015-97
Frame, DE 76909242
Frame, SRE 75909282
Insulator 92909510A 92909529 W115-222
Nut 95001451 95001505 W115-252N
Plug 9801298
Pulley 79909013A
Rectifier 77904070 W065-217A TRN-7442
Regulator 80904501 W085-326A T7365 IN6365
Retainer, Bearing 8590901
Rotor 70905073
Screw 96909016
Slip Ring 7190904B w165-11 28-82854
Stator 72908511
Washer 98909030
BRG RETAINER SCREW 4x.18mm 4 W115-205
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
BRUSH HOLDER SCREW-M4x14 4 W115-44
BEARING RETAINER-53mm OD 1 W115-51
BRUSH/RECT SCREW 4mm 3 W115-81
