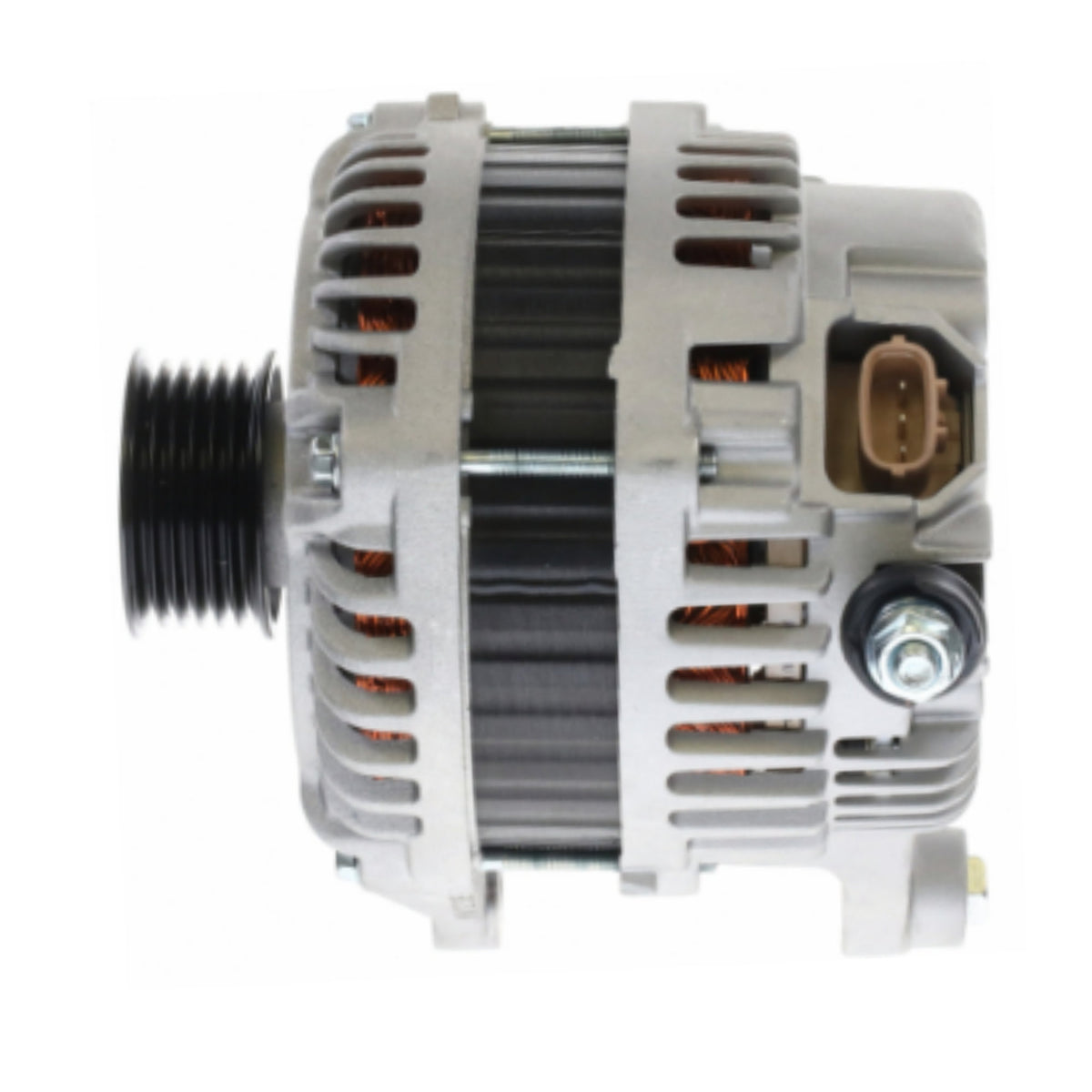

Alternator 2012-2013 Mazda 3 2.0L A2TJ1591 - 11635

Mazda 3 L4 2.0L 1998cc 2012-2013

Alternator Manufacturer and Factory #s
Bosch Remanufactured AL4242X
Bosch Service Europe 0986UR6090
Lester 11635
Mazda PE07-18-300
Mitsubishi A002TJ1591, A2TJ1591
PIC# 203-5477

Manufacture Mitsubishi
Amperage Rating 110
Decoupled Or Clutch Pulley No
Design ED/IF
Family A2TJ
Fan Type Internal
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 2
Plug Code 341
Plug Orientation SIDE
Pulley Belt Type Serpentine
Pulley Diameter 52.5
Pulley Groove Quantity 6
Pulley Type S6
Regulator Type Internal
Rotation Direction Clockwise (Right)
Type Alternator
Voltage 12

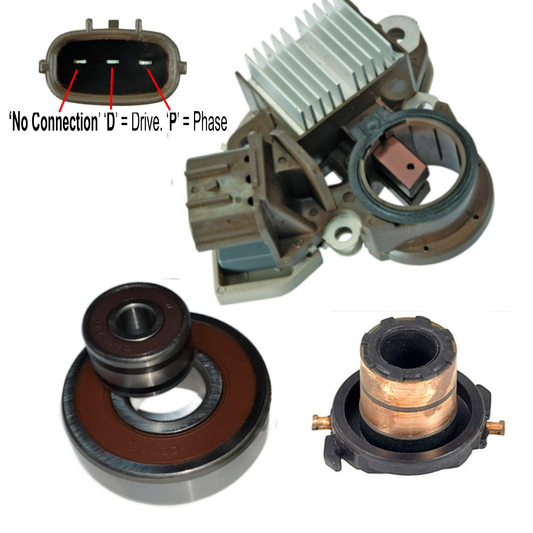

Alternator Rebuild Kit 11635RK-A
6303-2RS C3 BEARING W02X-11-1 54700
B8-23D BEARING-8x23x14mm W02X-50-1 52312
BRUSH-5x8x24mm W035-09 38-8307x2
RECTIFIER MAZDA 100A M6 W065-245 77033176
REGULATOR MAZDA D-D-P W085-270 80033106
PULLEY NUT-17x1.5mm W112-01
CAPACITOR PLATE W115-218
SLIP RING-13.5mm, 23mm OD W165-10
Rotor 7003952
Stator 72038372
