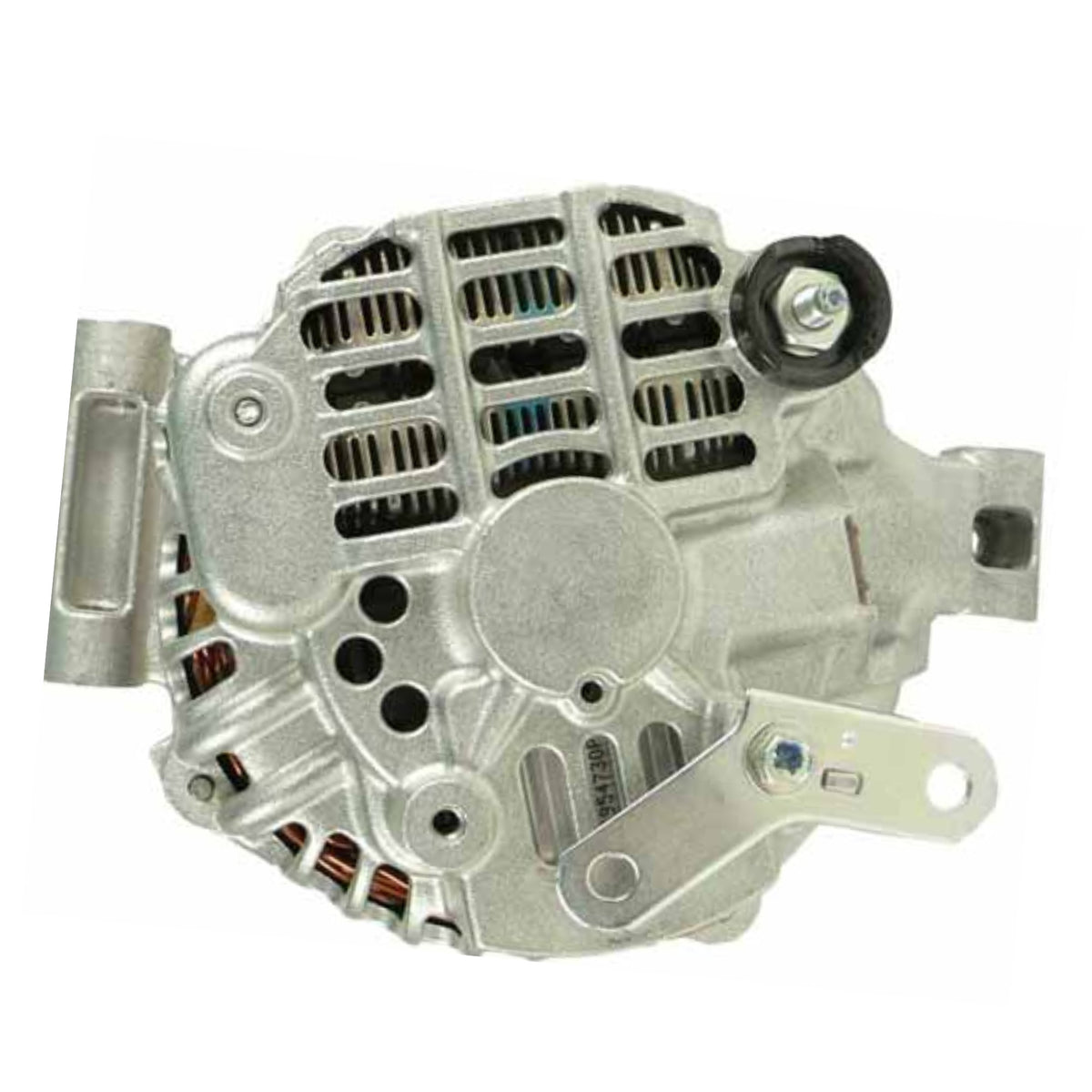

Alternator 2002-2006 Honda CR-V 2.4, Base model RSX A2TB7591 A2TC0691 - 13966

Acura RSX L4 2.0L 2002-2006 Base Model w/Mitsubishi Alternator
Honda CR-V L4 2.4L 2002-2006

Alternator Manufacturer and Factory #s
Acura 31100-PND-004, 31100-PND-004RM, AHGA55, 31100-PNC-004, AHGA61
Bosch Remanufactured AL1290X
ERA 209356
Excel 10668
Hollander 60827, 60938
Honda 31100-PND-004, 31100-PND-004RM, AHGA55, 31100-PNC-004, AHGA61
Lester 13966
Mitsubishi A002TB7591, A002TB7591ZE, A2TB7591, A2TB7591ZE, A002TC0691, A002TC0691A, A002TC0691ZE, A2TC0691, A2TC0691A, A2TC0691ZE
J&N 400-48040
Remy Light Duty 12462
Wilson 90-27-3315

Manufacture Mitsubishi
Amperage Rating 90
Decoupled Or Clutch Pulley No
Family A2TB
Fan Type Internal
Ground Type Negative
Oe Manufacturer Mitsubishi
Plug Clock Rear View Main Mounting Ear At 6 O Clock 6
Plug Type 296
Pulley Belt Type Serpentine
Pulley Groove Quantity 7
Regulator Type Internal
Rotation Direction Clockwise (Right)
Voltage 12

6303-2RS C3 BEARING 1 W02X-11-1 54700 6-303-4
B8-23D BEARING-8x23x14mm 1 W02X-50-1 52312 10-800-4
BRUSH-5x8x24mm CLIP 2 W035-21 7303305
MITSUBISHI DIODE-POS 30A SQ 4 W04X-24
MITSUBISHI DIODE-NEG 30A SQ 4 W04X-25

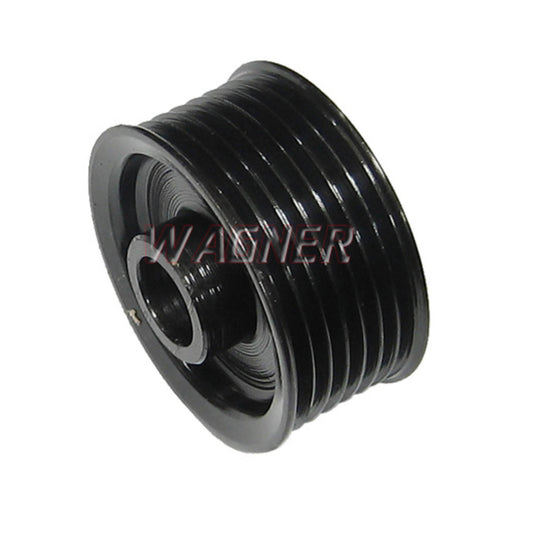

PULLEY 7GRV 60mm OD 1 W055-103
RECTIFIER 1 W065-212 77033132
REGULATOR CGLF 1 W085-214 80033031
PULLEY NUT-17x1.5mm 1 W112-01

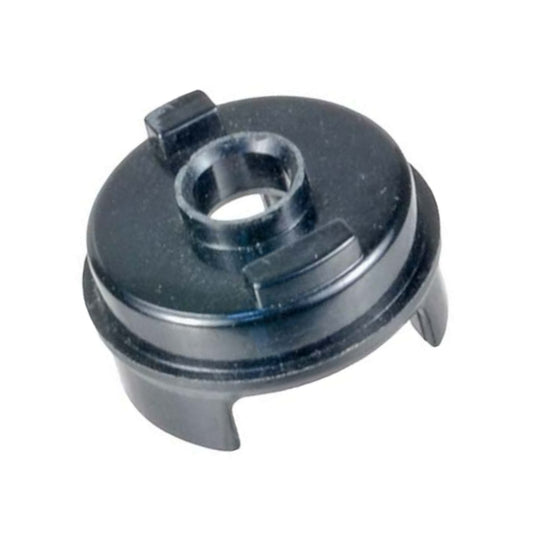

B+ INSULATOR-13966 ACURA 1 W115-186
NUT 6x1.0mm 10mm HEX 1 W115-39
BATTERY POST-6mm 1 W11X-04
SRE FRAME-13966 1 W125-21
DE FRAME-13966 1 W135-44
SLIP RING-13.5mm, 23mm OD 1 W165-10
Pigtail Lead Connector Acura Honda 4 Terminal / Wire: C FR IG L - 9801296
