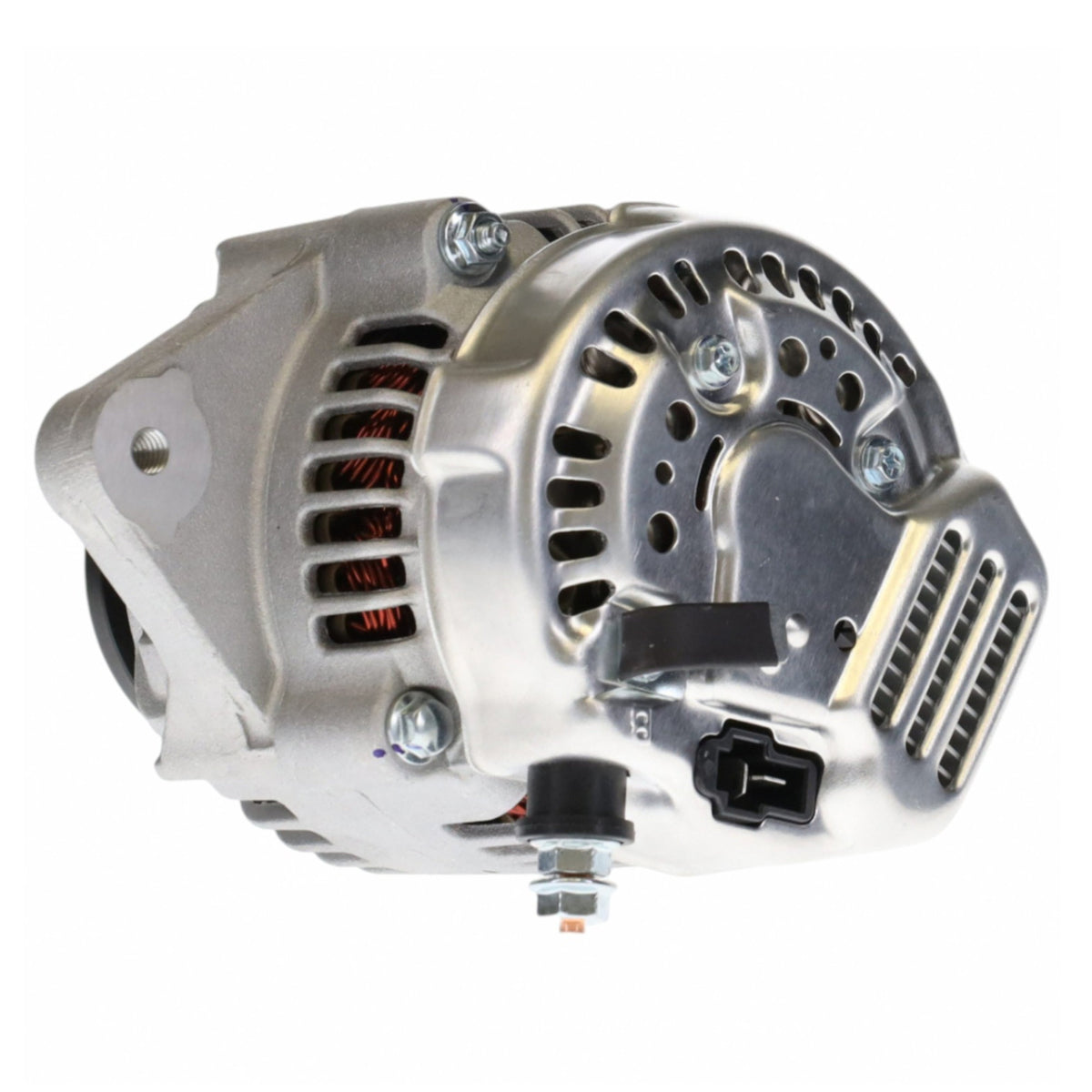

Alternator Kubota Mower Utility Tractor V1505 w/101211-8770, -8771, -8772, -8773 - 12534

Kubota 4-Wheel Drive Tractor
B2650HSD L4 1.5L 91cid Kubota V1505 2010-2013
B2650HSD L4 1.5L 91cid V1505 2010-2013
B2650HSDC L4 1.3L 81cid Kubota D1305 2013-2024
B2650HSDC L4 1.5L 91cid Kubota V1505 2010-2013
B2650HSDC L4 1.5L 91cid V1505 2010-2024
B3000HSDC L4 1.5L 91cid Kubota V1505 2010-2013
B3000HSDC L4 1.5L 91cid V1505 2010-2013
B3030HSDC L4 1.5L 91cid Kubota V1505 2010-2013
B3030HSDC L4 1.5L 91cid V1505 2010-2013
B3350HSD L4 1.5L 91cid Kubota V1505 2013-2024
B3350HSD L4 1.5L 91cid V1505 2013-2024
B3350HSDC L4 1.5L 91cid Kubota V1505 2013-2019
B3350HSDC L4 1.5L 91cid V1505 2013-2019
B3350SUHSD L4 1.5L 91cid Kubota V1505 2013-2024
B3350SUHSD L4 1.5L 91cid V1505 2013-2024
LX2610HSDCC L4 1.3L 81cid D1305 2019-2025
LX2610HSDCC L4 1.3L 81cid Kubota D1305 2019-2025
LX3310HSD L4 1.5L 91cid Kubota V1505 2019-2025
LX3310HSD L4 1.5L 91cid V1505 2019-2025
LX3310HSDCC L4 1.5L 91cid Kubota V1505 2019-2025
LX3310HSDCC L4 1.5L 91cid V1505 2019-2025
Kubota Commercial Zero-Turn Mower
ZD1511LF L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511LF L4 1.5L 91cid V1505 2017-2025
ZD1511RL L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RL L4 1.5L 91cid V1505 2017-2025
ZD1511RLF L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RLF L4 1.5L 91cid V1505 2017-2025
Kubota Compact Utility Tractor
B3000HSDCC L4 1.5L 91cid Kubota V1505 2010-2013
B3000HSDCC L4 1.5L 91cid V1505 2010-2013
B3030HSDCC L4 1.5L 91cid Kubota V1505 2010-2013
B3030HSDCC L4 1.5L 91cid V1505 2010-2013
Kubota Riding Rotary Turf Mower
F3990 L4 1.5L 91cid Kubota V1505 2014-2020
F3990 L4 1.5L 91cid V1505 2014-2020
Kubota Utility Vehicle
RTV-X1120 Deluxe 1123cc 2018-2023
RTV-X1120D 1123cc 2014-2017
RTV-X1140 1123cc 2016-2018
RTV-X1140 Worksite 1123cc 2019-2024
RTV-X900 General Purpose 898cc 2014-2023
-21.6 HP diesel side by side
-3-cylinder, 4-stroke, liquid-cooled diesel engine
RTV-X900 Worksite 898cc 2014-2023
RTV1140CPX 1123cc 2011-2016
RTV900 898cc Kubota D902E-UV 21.6 HP Dsl. 2004-2011
Kubota Zero-Turn Mower
ZD1511LF-3 L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511LF-3 L4 1.5L 91cid V1505 2017-2025
ZD1511RL-3 L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RL-3 L4 1.5L 91cid V1505 2017-2025
ZD1511RLF-3 L4 1.5L 91cid Kubota V1505 2017-2025
ZD1511RLF-3 L4 1.5L 91cid V1505 2017-2025

Alternator Manufacturer and Factory #s
Denso 101211-8770, 101211-8771, 101211-8772, 101211-8773
Kubota K7561-61910, K7561-61911, K7561-61912, K7561-61913, K7561-61914, K7561-61920
Lester 12534
PIC# 290-5169
J&N 400-52121R
Wilson 70-29-12534, 90-29-5529

Manufacture DENSO
Amperage Rating 55
Design IR/IF
Family BRUSHLESS
Fan Type Internal
Ground Type Negative
Oe Manufacturer DENSO
Plug Clock 9
Plug Clock Rear View Main Mounting Ear At 6 O Clock 9
Plug Code 193
Pulley Diameter 0
Pulley Groove Od 0
Pulley Type V1
Regulator Type Internal
Type Alternator
Voltage 12

Alternator Rebuild Kit 12534RK-A
DE HOUSING-20543 OEM 1 021401-4360
RECT COVER-T-PLUG 88mm OD 1 W015-71 84909029
6202-2RS BEARING-15x35x11mmPFI 1 W02X-05-1 53500
6002DW BEARING-15x32x11mm PFI 1 W02X-59-1 53207
BRUSH-5x7x15mm STANDARD 2 W035-04

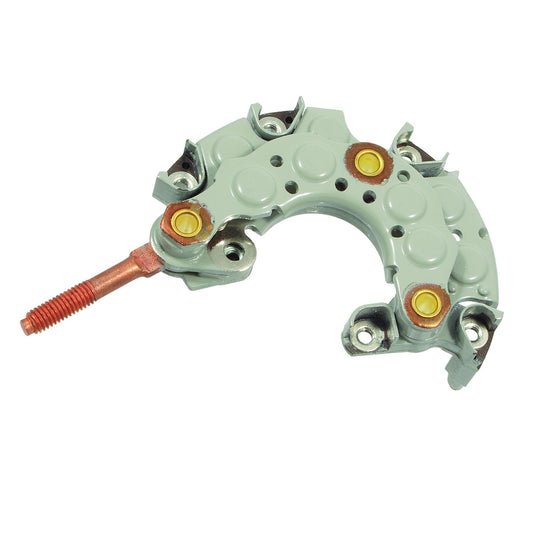

RECT-JOHN DEERE 35mm B+ 1 W065-228 77904056

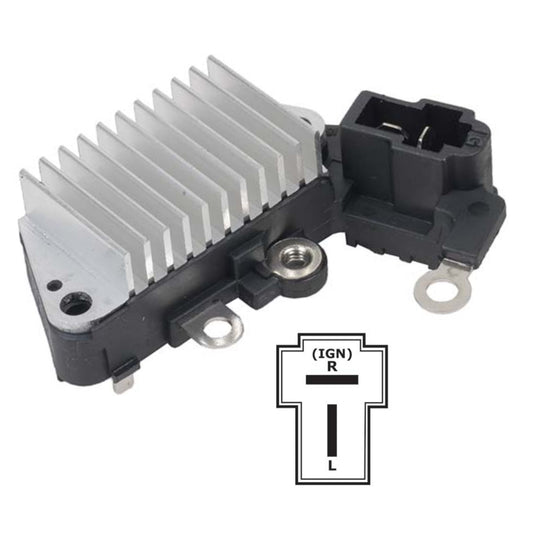

REG-12080 DEERE IG-L 1 W085-121 80904444
Plug Harness 9801193
TERMINAL INSULATOR-SHORT 1 W115-13
BRG RETAINER SCREW 4x.18mm 4 W115-205
REG SCREW-M4x0.7x25 2 W115-206
ROTOR BEARING SPACER-FLAT 1 W115-207
ROTOR BEARING COVER-TOP 1 W115-208
BRUSH SPRING-LATE 2 W115-219
BRUSH HOLDER GROMMET-LATE 1 W115-22
Pulley 79909082
PULLEY NUT-14x1.5 FLANGE OE 1 W115-252N
NUT 6x1.0mm 10mm HEX 1 W115-39
BEARING RETAINER 1 W115-55 8590903
BRUSH/RECT SCREW 4mm 6 W115-81
BRUSH/RECT SCREW 4mm 6 W115-81
BRUSH HOLDER SET-14668 1 W155-04
BRUSH HOLDER 14668 1 W155-04B 39-8200
SLIP RING W/LEAD 1 W165-00L 28-82853
SLIP RING COLLAR-(1PC) 2 W165-04
Rotor 70905136
Stator 72908509


OEM #s
Bearing Retainer DE Bearing 1 021411-0500
Bearing, DE Housing 1 949100-3731
Bearing, SRE Housing 1 949100-3660
Brush 2 021660-0510
Brush Holder Assembly 1 021620-2201
Brush Spring 2 949170-6990
Cover SRE Housing 1 021551-1120
Dust Shield SRE Bearing 1 021506-0070
Housing, DE OEM Version Includes Stator & Other Components 1 021400-8360
Housing, DE 1 021401-4360
Housing, SRE 1 121501-1060
Insulating Bushing Output Stud 1 021605-1700
Nut, Hex-Flange SRE Housing 2 949056-2481
Nut, Hex-Flange Rotor Shaft 1 949056-2900
Nut, Hex-Washer SRE Housing 1 949056-1001
Pulley 1 021041-4140
Rectifier 1 021580-4310
Rectifier 1 021580-3340
Regulator, Electronic 1 126000-2781
Rotor OEM Version Includes Bearing & Dust Shield 1 021200-5141
Screw Regulator Attaching 2 913100-4251
Screw Bearing Retainer Attaching 4 949006-5200
Screw Stator Leads & Brush Holder Attaching 6 949006-5460
Screw Regulator Attaching 1 949006-5470
Screw SRE Cover Attaching 3 949046-2040
Seal Brush Holder/SRE Cover 1 021626-0240
Spacer Fan 1 021045-0700
Stator 1 021100-3900
Stud Housing Assembly Stud 2 949043-2120
Thru Bolt SRE Housing 2 949044-4270
Wire Clip SRE Housing 1 021751-0890
